• SNR UCFLE208CC Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE208CC-SNR

SNR UCFLE208CC Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE208CC Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$88.31 ex VAT
$88.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.79
4+ $63.13
9+ $61.80
19+ $59.81
49+ $58.48
99+ $55.15
499+ $46.52
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

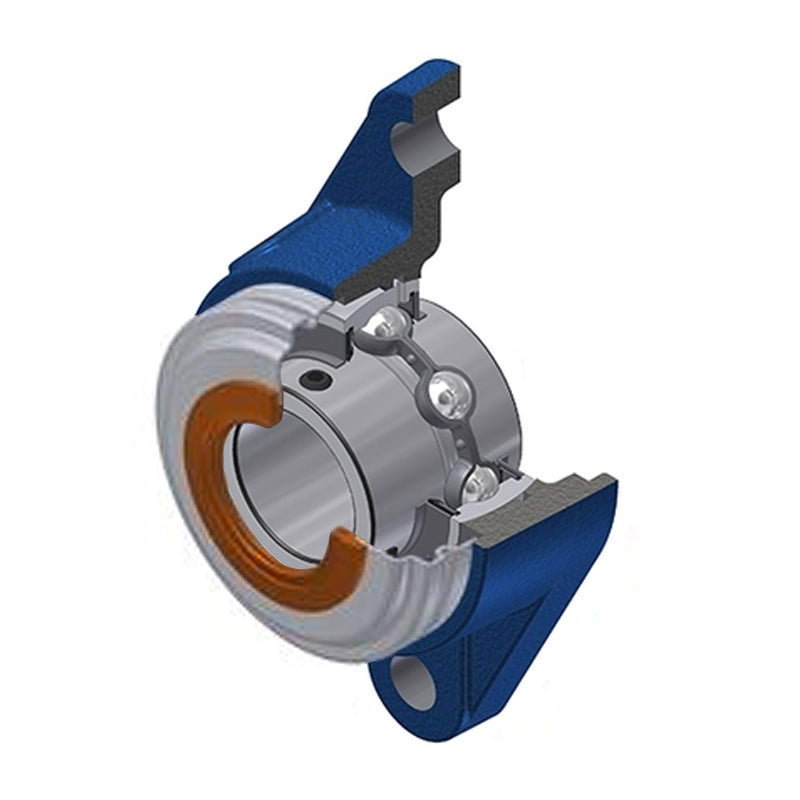

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCFLE
Bolt Hole Centres:
143.5mm
Technical
--- Dimensions
Shaft diameter d 40mm
A 37.5mm
A1 13mm
A2 54.2mm
B 49.2mm
e 24mm
H 172mm
J 143.5mm
L 105mm
N 14mm
S 19mm
Dz 88mm
Z 57.7mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.64 kg
