SKU: UCFLE209-28N-SNR

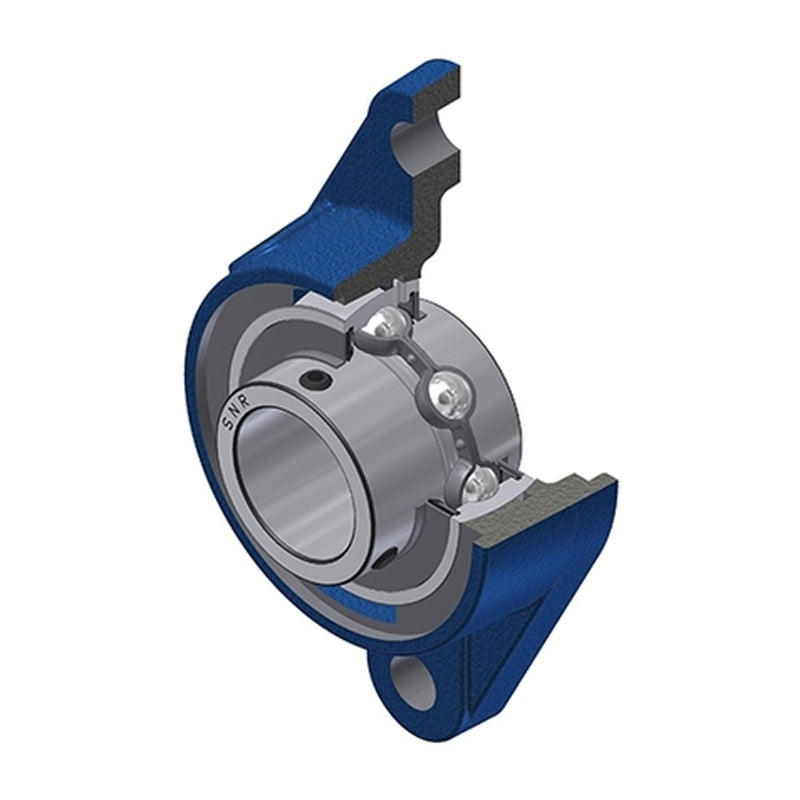

SNR UCFLE209-28N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
SNR UCFLE209-28N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
Regular price
$117.83
ex VAT
Regular price
Sale price
$117.83
ex VAT
In stock
Price Break
3+
$87.78
4+
$84.24
9+
$82.46
19+
$79.80
49+
$78.03
99+
$73.60
499+
$62.07
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-3/4 inch |
| A | 37.5mm |
| A1 | 13mm |
| A2 | 54.2mm |
| B | 49.2mm |
| e | 24mm |
| H | 180mm |
| J | 148.5mm |
| L | 111mm |
| N | 14mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.8 kg |
