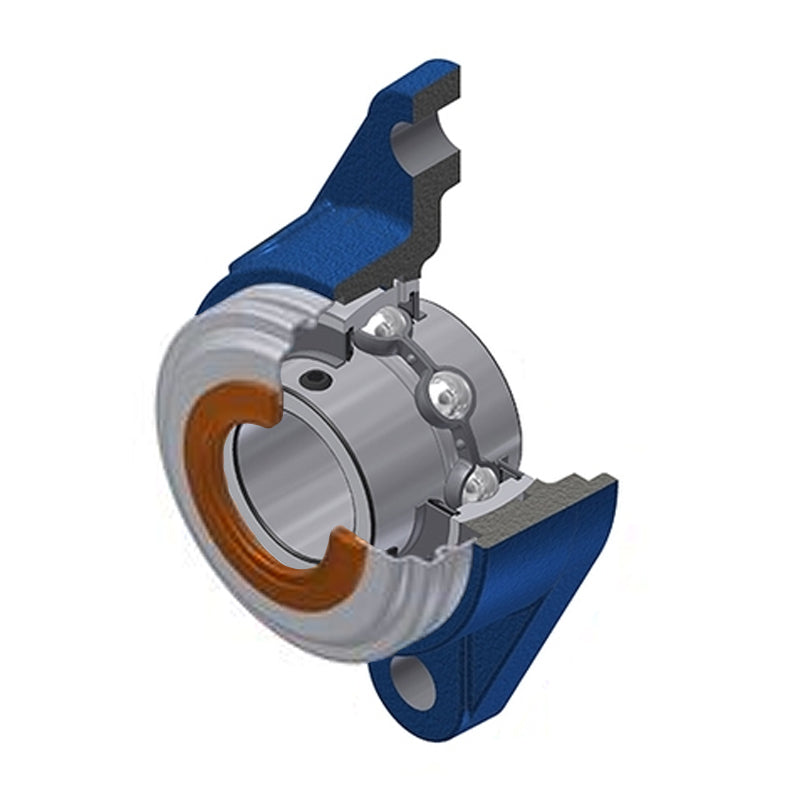

• SNR UCFLE210-30CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE210-30CC-SNR

SNR UCFLE210-30CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE210-30CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$103.04 ex VAT
$103.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.76
4+ $73.66
9+ $72.11
19+ $69.79
49+ $68.24
99+ $64.36
499+ $54.28
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Style:
UCFLE
Bolt Hole Centres:
157mm
Technical
--- Dimensions
Shaft diameter d 1-7/8 inch
A 41.6mm
A1 13mm
A2 60.6mm
B 51.6mm
e 28mm
H 190mm
J 157mm
L 116mm
N 18mm
S 19mm
Dz 100mm
Z 64.7mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 2.17 kg
