• SNR UCFLE212-38CC Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCFLE212-38CC-SNR

SNR UCFLE212-38CC Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCFLE212-38CC Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/8 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$147.25 ex VAT
$147.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.70
4+ $105.27
9+ $103.05
19+ $99.73
49+ $97.51
99+ $91.97
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

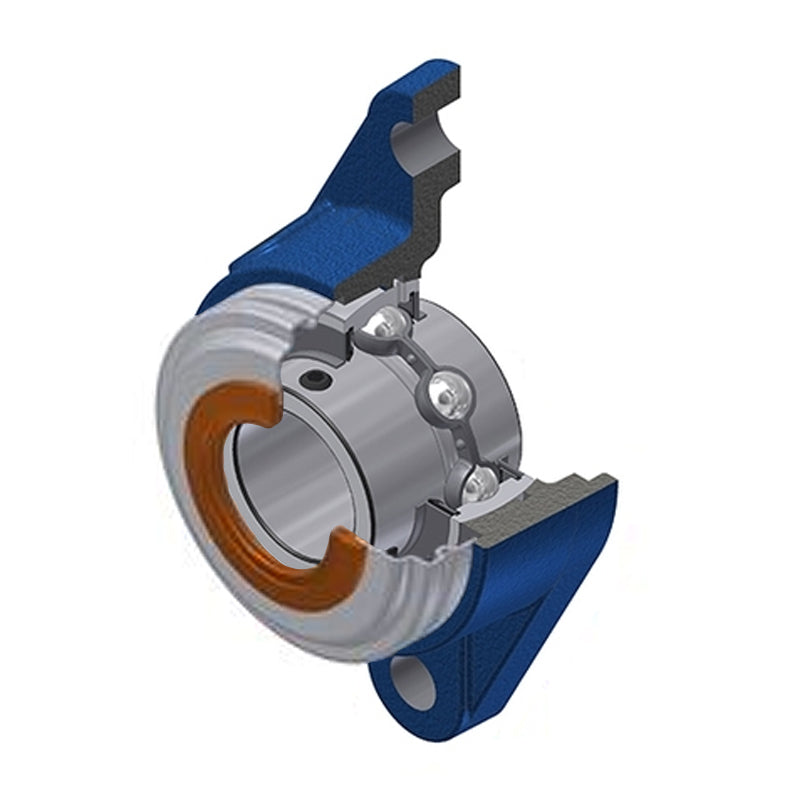

UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
60.33mm = 2.375 (2-3/8) inch
Style:
UCFLE
Bolt Hole Centres:
202mm
Technical
--- Dimensions
Shaft diameter d 2-3/8 inch
A 50.4mm
A1 16mm
A2 73.7mm
B 65.1mm
e 34mm
H 238mm
J 202mm
L 138mm
N 18mm
S 25.4mm
Dz 120mm
Z 77.6mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.73 kg
