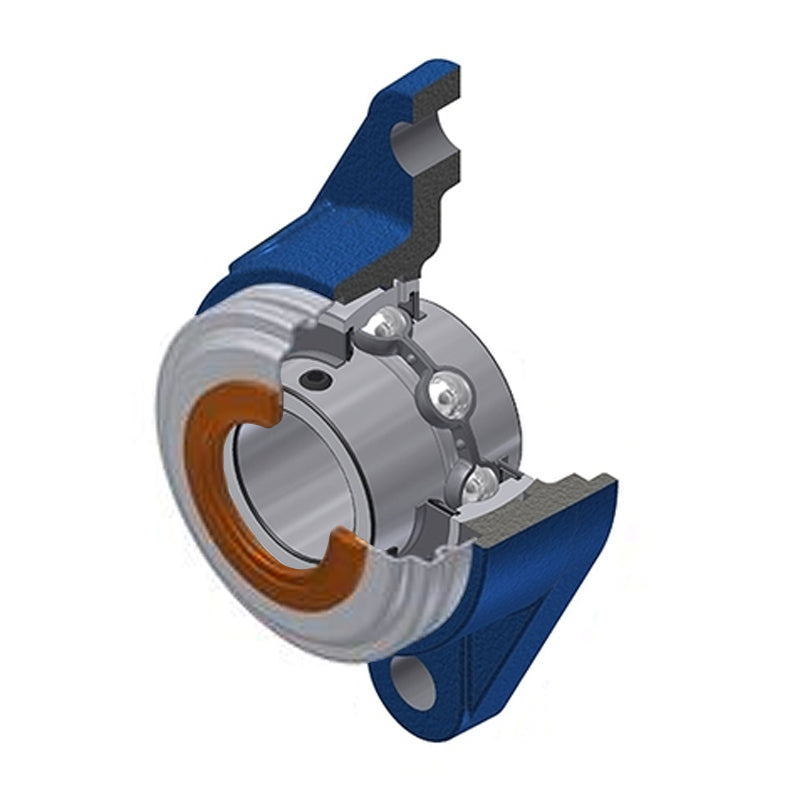

• SNR UCFLE213CO Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCFLE213CO-SNR

SNR UCFLE213CO Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCFLE213CO Metric Two Bolt Oval Cast Iron Flange Housing with 65mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$206.15 ex VAT
$206.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.58
4+ $147.37
9+ $144.27
19+ $139.62
49+ $136.51
99+ $128.76
499+ $108.59
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCFLE
Bolt Hole Centres:
216mm
Technical
--- Dimensions
Shaft diameter d 65mm
A 57mm
A1 18mm
A2 77.7mm
B 65.1mm
e 38mm
H 258mm
J 216mm
L 160mm
N 21mm
S 25.4mm
Dz 132mm
Z 82.4mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 5.739 kg
