• UCFLX05-16 Imperial Two Bolt Oval Cast Iron Housing with 1 inch Bore Insert
1 1

SKU: UCFLX.05-16

UCFLX05-16 Imperial Two Bolt Oval Cast Iron Housing with 1 inch Bore Insert

UCFLX05-16 Imperial Two Bolt Oval Cast Iron Housing with 1 inch Bore Insert
$26.26 ex VAT
$26.26 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.58
4+ $16.60
9+ $16.40
19+ $16.20
49+ $16.00
99+ $15.81
499+ $14.82
999+ $14.62
1999+ $14.42
2999+ $14.23
4999+ $13.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

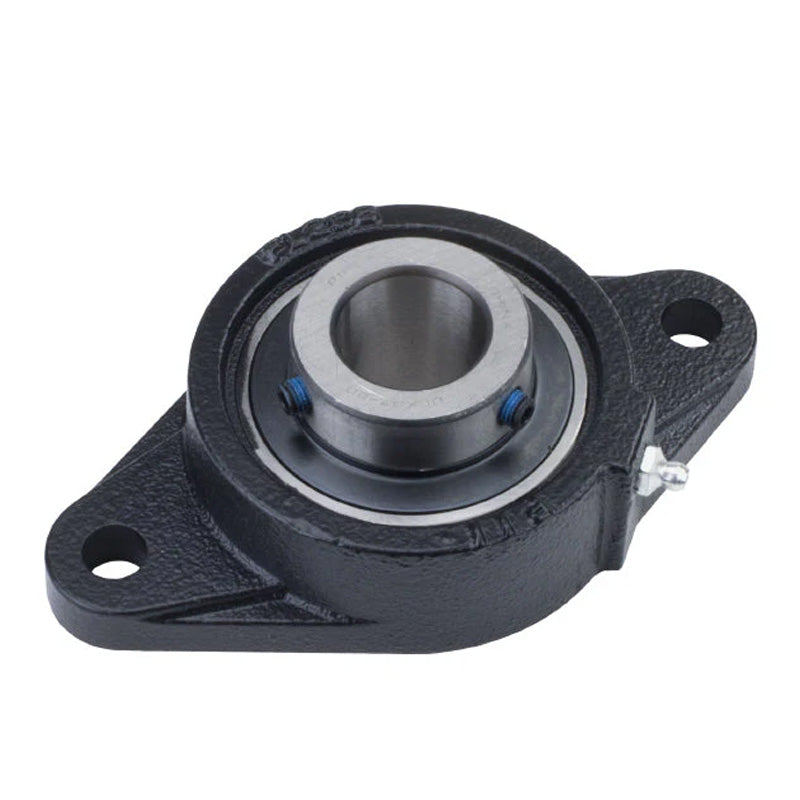

UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25.4mm = 1 inch
Style:
UCFLX
Bolt Hole Centres:
117.08mm = 4.609 (4-39/64) inch
Technical
d 1 inch
a 141mm = 5-9/16 inch
e 117mm = 4-39/64 inch
i 117mm = 4-39/64 inch
g 13mm = 1/2 inch
l 30mm = 1-3/16 inch
s 12mm = 15/32 inch
b 83mm = 3-9/32 inch
z 40.2mm = 1-37/64 inch
Bi 38.1mm = 1.5 inch
n 15.9mm = 0.626 inch
Bolt 10mm = 3/8 inch
Weight 1 kg
Dynamic load 1520 kgf
Static load 1020 kgf
