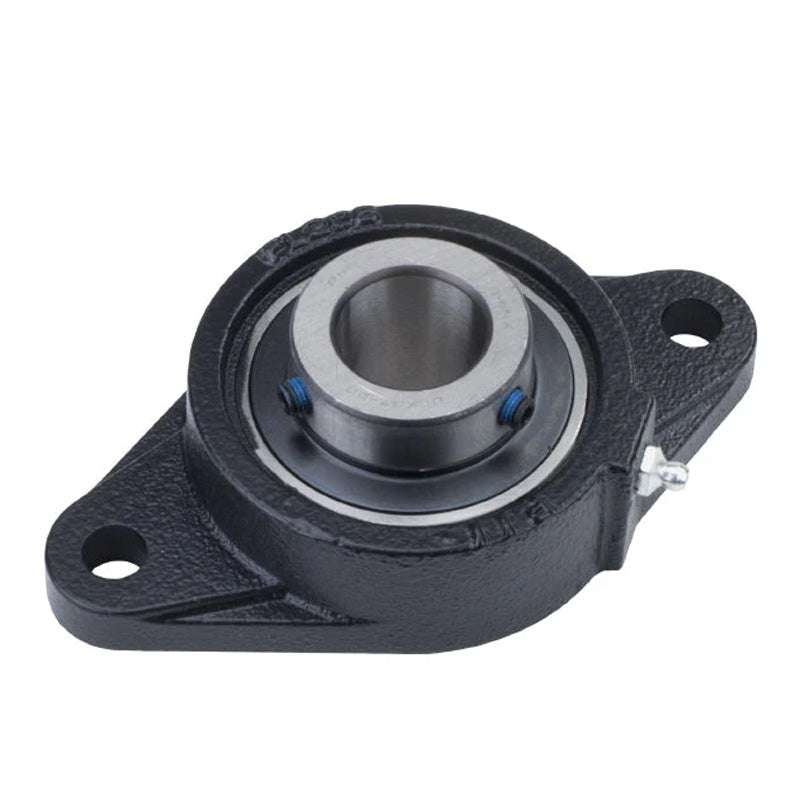

• UCFLX06-18 Imperial Two Bolt Oval Cast Iron Housing with 1-1/8 inch Bore Insert
1 1

SKU: UCFLX.06-18

UCFLX06-18 Imperial Two Bolt Oval Cast Iron Housing with 1-1/8 inch Bore Insert

UCFLX06-18 Imperial Two Bolt Oval Cast Iron Housing with 1-1/8 inch Bore Insert
$32.73 ex VAT
$32.73 ex VAT
Sale Sold out

Equivalent to: MSFT1-1/8

In stock

Price Break
3+ $21.92
4+ $20.69
9+ $20.45
19+ $20.20
49+ $19.95
99+ $19.71
499+ $18.47
999+ $18.23
1999+ $17.98
2999+ $17.74
4999+ $17.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
UCFLX
Bolt Hole Centres:
130.18mm = 5.125 (5-1/8) inch
Technical
d 1-1/8 inch
a 155mm = 6-5/32 inch
e 130mm = 5-1/8 inch
i 130mm = 5-1/8 inch
g 15mm = 19/32
l 34mm = 1-11/32 inch
s 16mm = 5/8 inch
b 95mm = 3-3/4 inch
z 44.4mm = 1-3/4 inch
Bi 42.9mm = 1.689 inch
n 17.5mm = 0.689 inch
Bolt 14mm = 1/2 inch
Weight 1.4 kg
Dynamic load 2010 kgf
Static load 1390 kgf
