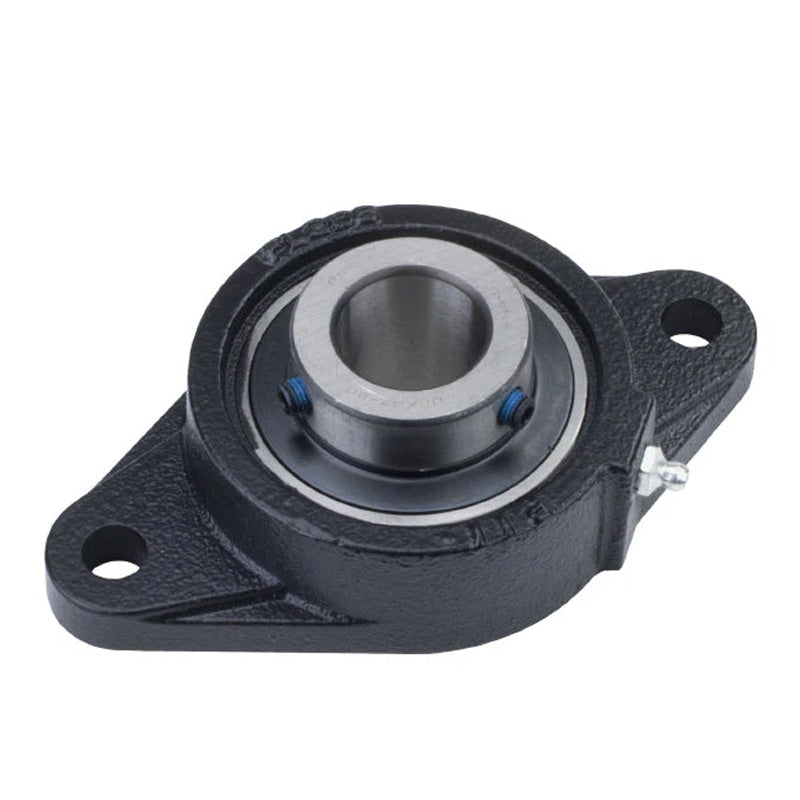

• UCFLX06-19 Imperial Two Bolt Oval Cast Iron Housing with 1-3/16 inch Bore Insert
1 1

SKU: UCFLX.06-19

UCFLX06-19 Imperial Two Bolt Oval Cast Iron Housing with 1-3/16 inch Bore Insert

UCFLX06-19 Imperial Two Bolt Oval Cast Iron Housing with 1-3/16 inch Bore Insert
$26.99 ex VAT
$26.99 ex VAT
Sale Sold out

Equivalent to: MSFT1-3/16

In stock

Price Break
3+ $18.07
4+ $17.06
9+ $16.86
19+ $16.65
49+ $16.45
99+ $16.25
499+ $15.23
999+ $15.03
1999+ $14.83
2999+ $14.62
4999+ $14.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30.16mm = 1.187 (1-3/16) inch
Style:
UCFLX
Bolt Hole Centres:
130.18mm = 5.125 (5-1/8) inch
Technical
d 1-3/16 inch
a 155mm = 6-5/32 inch
e 130mm = 5-1/8 inch
i 130mm = 5-1/8 inch
g 15mm = 19/33
l 34mm = 1-11/32 inch
s 16mm = 5/8 inch
b 95mm = 3-3/4 inch
z 44.4mm = 1-3/4 inch
Bi 42.9mm = 1.689 inch
n 17.5mm = 0.689 inch
Bolt 14mm = 1/2 inch
Weight 1.4 kg
Dynamic load 2010 kgf
Static load 1390 kgf
Rec max speed 4500 rpm
