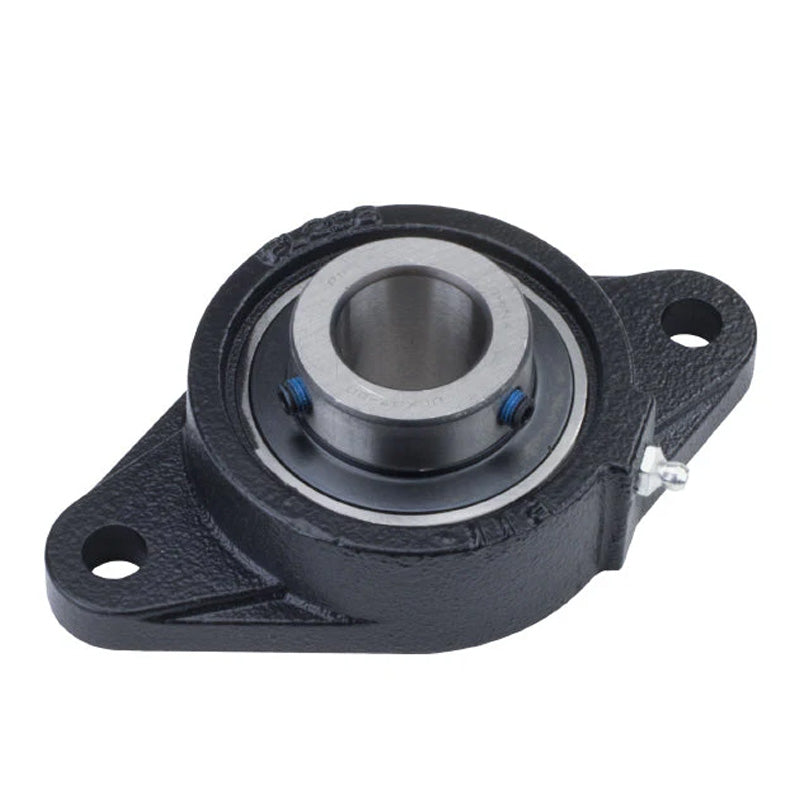

• UCFLX06-20 Imperial Two Bolt Oval Cast Iron Housing with 1-1/4 inch Bore Insert
1 1

SKU: UCFLX.06-20

UCFLX06-20 Imperial Two Bolt Oval Cast Iron Housing with 1-1/4 inch Bore Insert

UCFLX06-20 Imperial Two Bolt Oval Cast Iron Housing with 1-1/4 inch Bore Insert
$28.55 ex VAT
$28.55 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.13
4+ $18.05
9+ $17.84
19+ $17.62
49+ $17.41
99+ $17.19
499+ $16.12
999+ $15.90
1999+ $15.69
2999+ $15.47
4999+ $15.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCFLX
Bolt Hole Centres:
130.18mm = 5.125 (5-1/8) inch
Technical
d 1-1/4 inch
a 155mm = 6-5/32 inch
e 130mm = 5-1/8 inch
i 130mm = 5-1/8 inch
g 15mm = 19/34
l 34mm = 1-11/32 inch
s 16mm = 5/8 inch
b 95mm = 3-3/4 inch
z 44.4mm = 1-3/4 inch
Bi 42.9mm = 1.689 inch
n 17.5mm = 0.689 inch
Bolt 14mm = 1/2 inch
Weight 1.4 kg
Dynamic load 2010 kgf
Static load 1390 kgf
