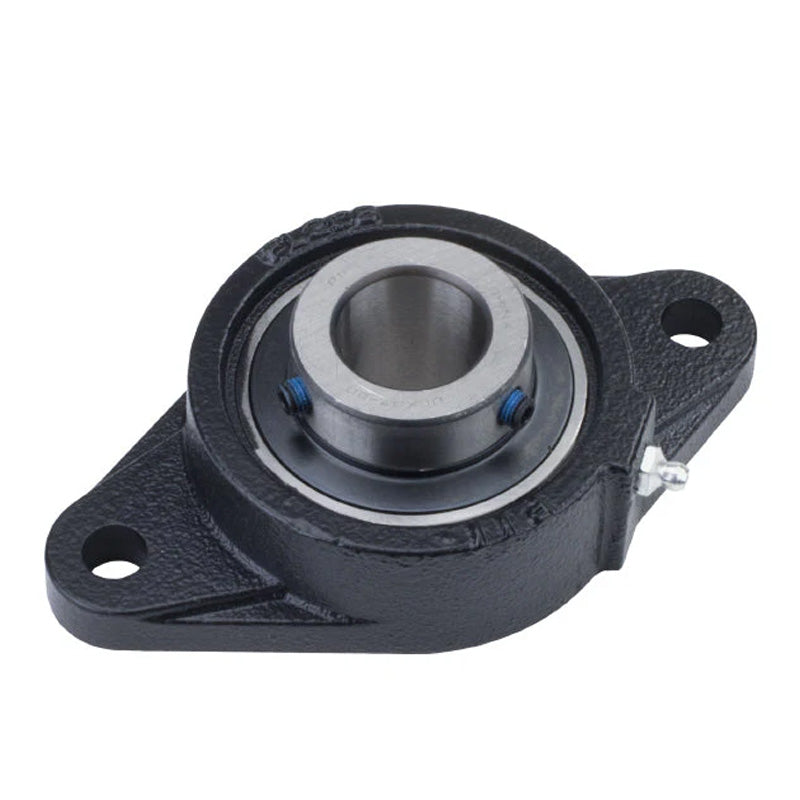

• UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
1 1

SKU: UCFLX.07

UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert

UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
$32.19 ex VAT
$32.19 ex VAT
Sale Sold out

Equivalent to: MSFT35

In stock

Price Break
3+ $21.56
4+ $20.35
9+ $20.11
19+ $19.86
49+ $19.62
99+ $19.38
499+ $18.17
999+ $17.93
1999+ $17.68
2999+ $17.44
4999+ $16.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Style:
UCFLX
Bolt Hole Centres:
144mm
Technical
d 35mm
a 171mm
e 144mm
i 144mm
g 16mm
l 38mm
s 16mm
b 105mm
z 51.2mm
Bi 49.2mm
n 17.5mm
Bolt M14
Weight 1.9 kg
Dynamic load 25560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
