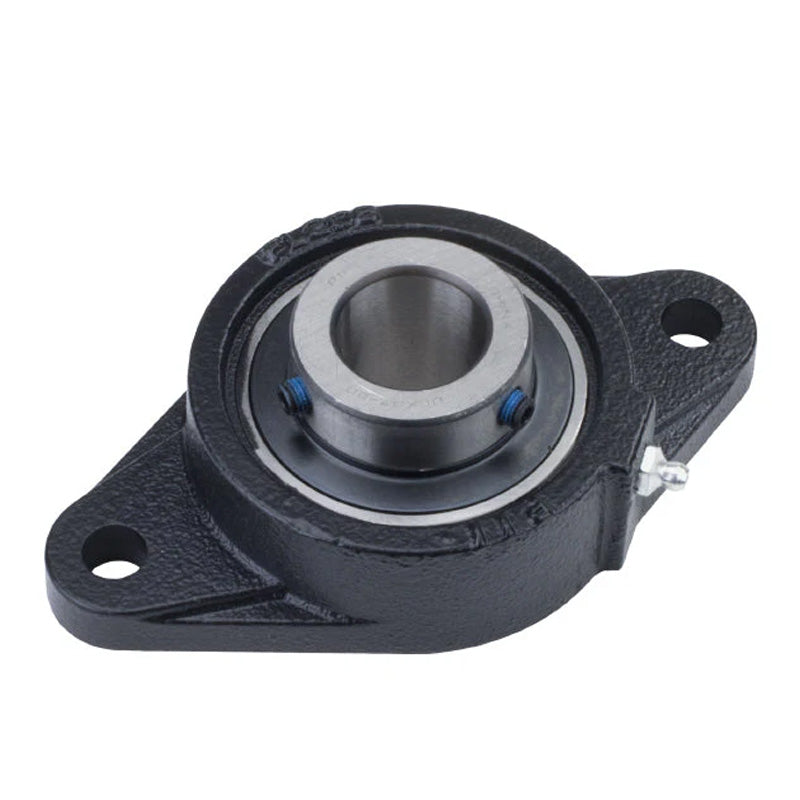

• UCFLX07-23 Imperial Two Bolt Oval Cast Iron Housing with 1-7/16 inch Bore Insert
1 1

SKU: UCFLX.07-23

UCFLX07-23 Imperial Two Bolt Oval Cast Iron Housing with 1-7/16 inch Bore Insert

UCFLX07-23 Imperial Two Bolt Oval Cast Iron Housing with 1-7/16 inch Bore Insert
$32.19 ex VAT
$32.19 ex VAT
Sale Sold out

Equivalent to: MSFT1-7/16

In stock

Price Break
3+ $21.56
4+ $20.35
9+ $20.11
19+ $19.86
49+ $19.62
99+ $19.38
499+ $18.17
999+ $17.93
1999+ $17.68
2999+ $17.44
4999+ $16.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
UCFLX
Bolt Hole Centres:
144.06mm = 5.671 (5-43/64) inch
Technical
d 1-7/16 inch
a 171mm = 6-23/32 inch
e 144mm = 5-43/64 inch
i 144mm = 5-43/64 inch
g 16mm = 5/8 inch
l 38mm = 1-1/2 inch
s 16mm = 5/8 inch
b 105mm = 4-1/8 inch
z 51.2mm = 2-1/64 inch
Bi 49.2mm = 1.937 inch
n 17.5mm = 0.689 inch
Bolt 14mm = 1/2 inch
Weight 1.9 kg
Dynamic load 25560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
