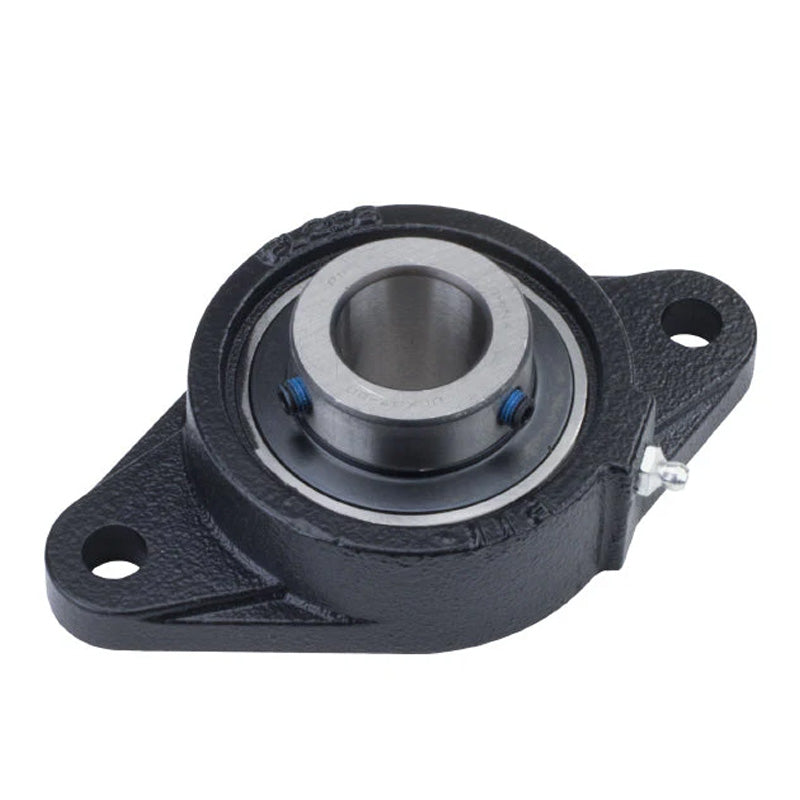

• UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
1 1

SKU: UCFLX.09-26

UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert

UCFLX09-26 Imperial Two Bolt Oval Cast Iron Housing with 1-5/8 inch Bore Insert
$45.88 ex VAT
$45.88 ex VAT
Sale Sold out

Equivalent to: MSFT1-5/8

In stock

Price Break
3+ $30.73
4+ $29.00
9+ $28.66
19+ $28.31
49+ $27.97
99+ $27.62
499+ $25.90
999+ $25.55
1999+ $25.20
2999+ $24.86
4999+ $24.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Style:
UCFLX
Bolt Hole Centres:
157.16mm = 6.187 (6-3/16) inch
Technical
d 1-5/8 inch
a 189mm = 7-7/16 inch
e 157mm = 6-3/16 inch
i 157mm = 6-3/16 inch
g 16mm = 5/8 inch
l 40mm = 1-9/16 inch
s 16mm = 5/8 inch
b 116mm = 4-9/16 inch
z 55.6mm = 2-3/16 inch
Bi 51.6mm = 2.0315 inch
n 19mm = 0.748 inch
Bolt 14mm = 1/2 inch
Weight 2.4 kg
Dynamic load 2750 kgf
Static load 2020 kgf
