SKU: UCFLX.10-31

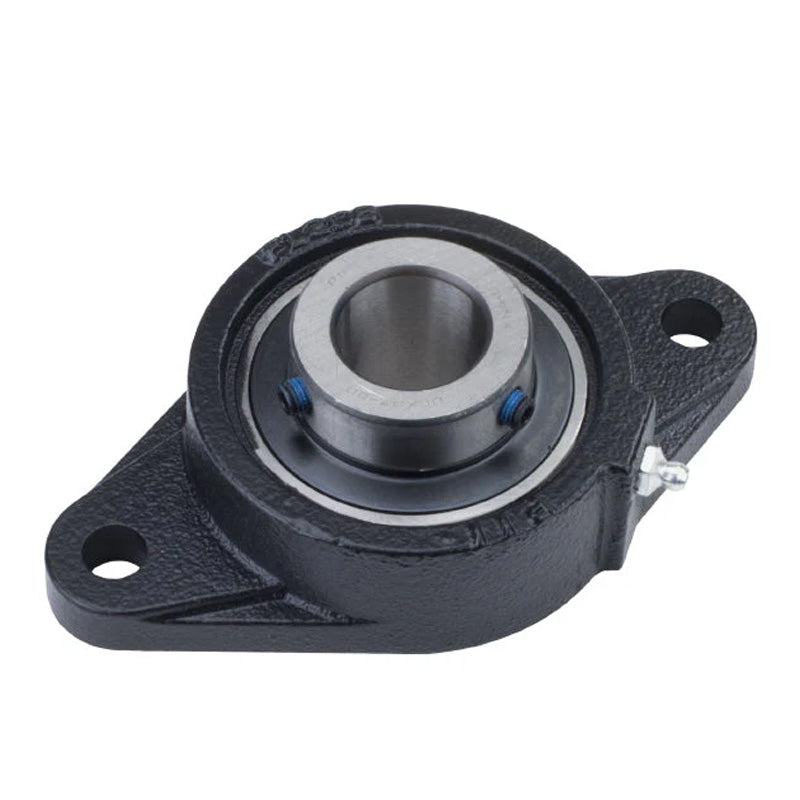

UCFLX10-31 Imperial Two Bolt Oval Cast Iron Housing with 1-15/16 inch Bore Insert
UCFLX10-31 Imperial Two Bolt Oval Cast Iron Housing with 1-15/16 inch Bore Insert
Out of stock
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 184.15mm = 7.25 (7-1/4) inch
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| a | 216mm = 8-1/2 inch |
| e | 184mm = 7-1/4 inch |
| i | 184mm = 7-1/4 inch |
| g | 18mm = 23/32 inch |
| l | 44mm = 1-23/32 inch |
| s | 19mm = 3/4 inch |
| b | 133mm = 5-1/4 inch |
| z | 59.4mm = 2-11/32 inch |
| Bi | 55.6mm = 2.189 inch |
| n | 22.2mm = 0.874 inch |
| Bolt | 16mm = 5/8 inch |
| Weight | 3.7 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
