SKU: UCFLX08D1-NTN

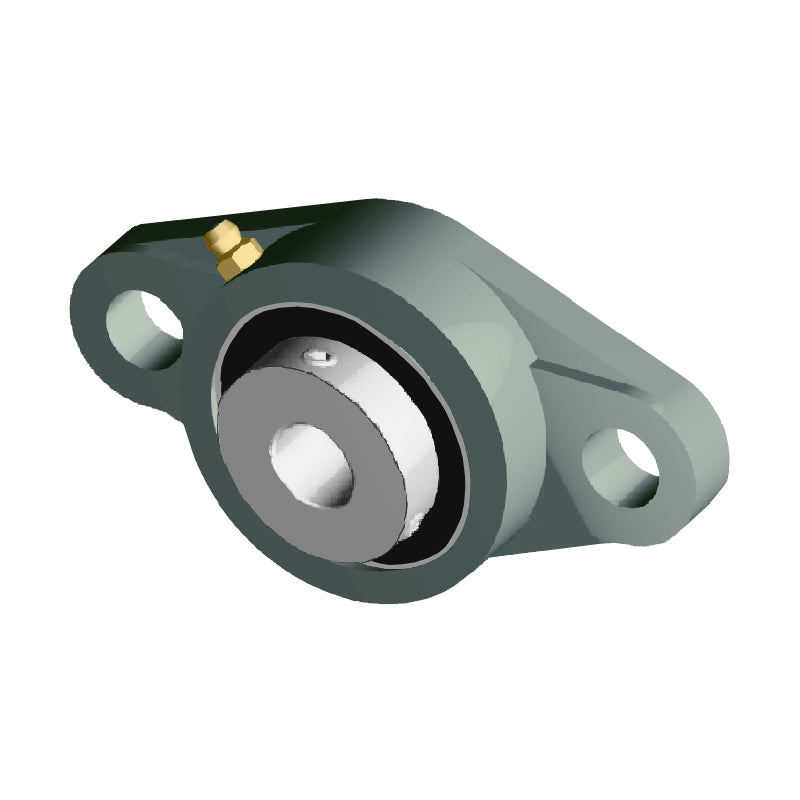

NTN UCFLX08D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
NTN UCFLX08D1 Metric Two Bolt Oval Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
$73.58
ex VAT
Regular price
Sale price
$73.58
ex VAT
In stock
Price Break
3+
$54.82
4+
$52.60
9+
$51.49
19+
$49.83
49+
$48.73
99+
$45.96
499+
$38.76
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 148mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 179mm |
| J | 148mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| L | 111mm |
| A<sub>0</sub> | 52.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 36 kN |
| Static load C<sub>0r</sub> | 20.4 kN |
| Fatigue load limit C<sub>u</sub> | 1.6 kN |
| --- | Unit information |
| Mass | 2 kg |
