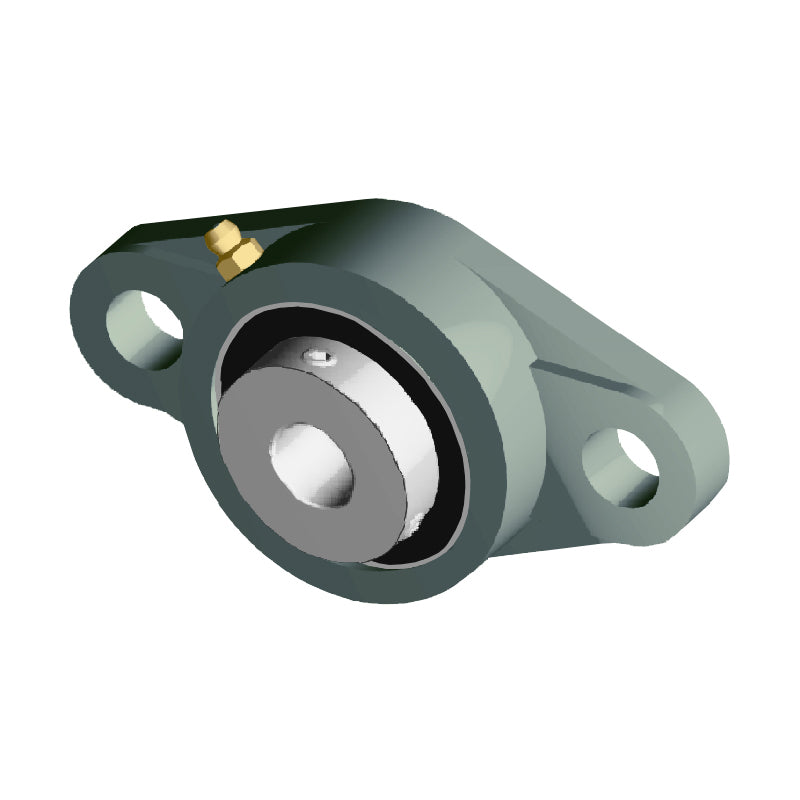

• NTN UCFLX10D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
  • NTN
1 2

SKU: UCFLX10D1-NTN

NTN UCFLX10D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days

NTN UCFLX10D1 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
$72.56 ex VAT
$72.56 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.60
4+ $45.87
9+ $45.33
19+ $44.78
49+ $44.23
99+ $43.69
499+ $40.96
999+ $40.41
1999+ $39.87
2999+ $39.32
4999+ $38.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Style:
UCFLX
Bolt Hole Centres:
184mm
Technical
--- Dimensions
Shaft diameter 50mm
H 216mm
J 184mm
A<sub>2</sub> 26mm
A<sub>1</sub> 18mm
A 44mm
N 19mm
L 133mm
A<sub>0</sub> 59.4mm
B 55.6mm
S 22.2mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 48 kN
Static load C<sub>0r</sub> 29.2 kN
Fatigue load limit C<sub>u</sub> 2.29 kN
--- Unit information
Mass 3 kg
