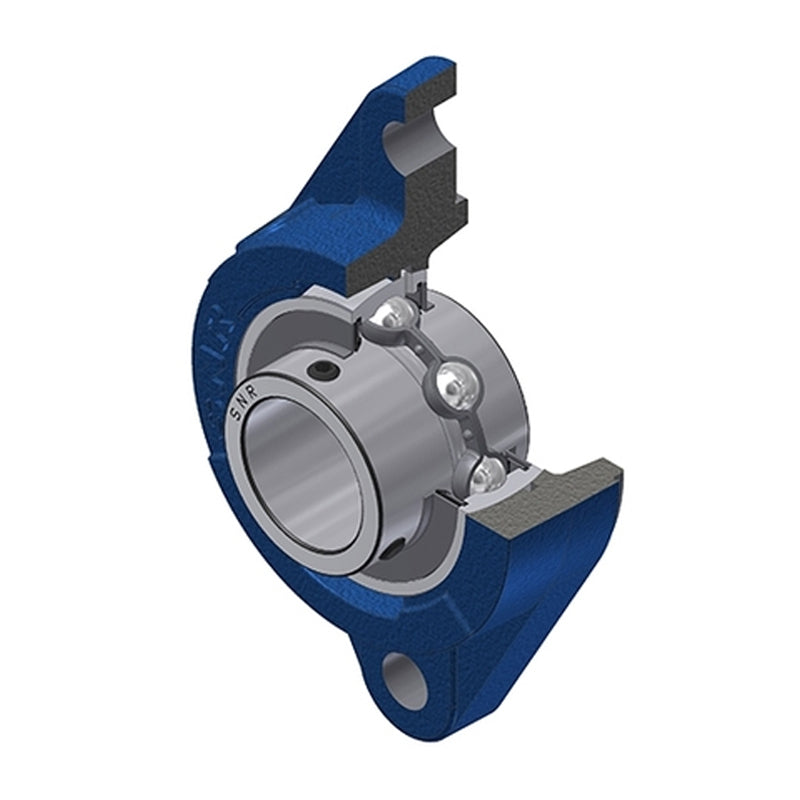

• SNR UCFLZ209 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFLZ209-SNR

SNR UCFLZ209 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days

SNR UCFLZ209 Metric Two Bolt Oval Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
$58.91 ex VAT
$58.91 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.46
4+ $37.25
9+ $36.80
19+ $36.36
49+ $35.91
99+ $35.47
499+ $33.25
999+ $32.81
1999+ $32.37
2999+ $31.92
4999+ $31.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCFLZ
Bolt Hole Centres:
148.5mm
Technical
--- Dimensions
Shaft diameter d 45mm
A 36.5mm
A1 13mm
A2 50.2mm
A4 32.5mm
B 49.2mm
e 20mm
H 180mm
H3 105mm
J 148.5mm
L 111mm
N 14mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.88 kg
