SKU: UCFLZ212-SNR

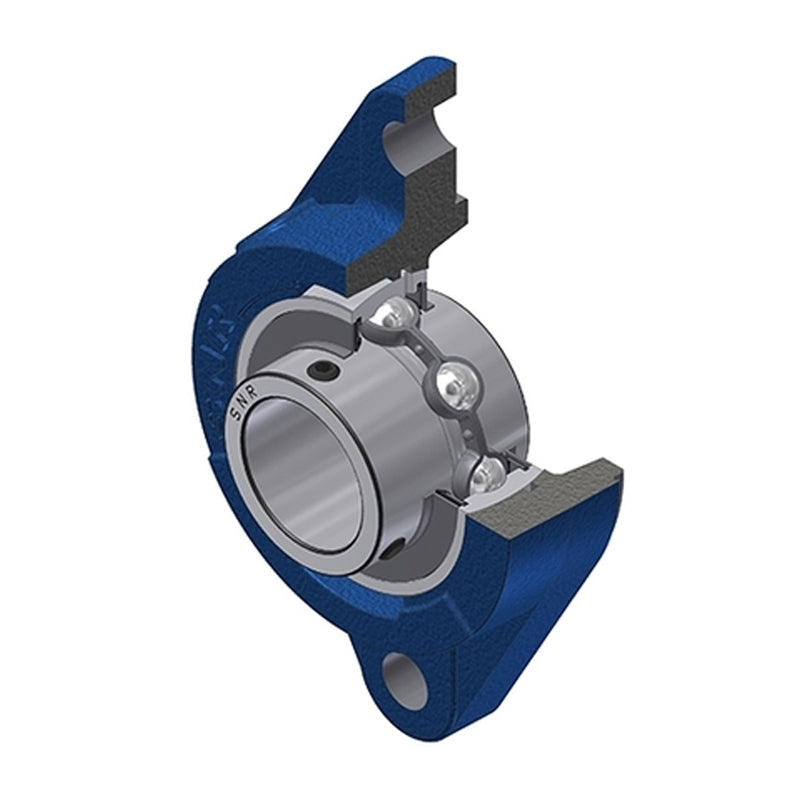

SNR UCFLZ212 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCFLZ212 Metric Two Bolt Oval Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
$117.85
ex VAT
Regular price
Sale price
$117.85
ex VAT
In stock
Price Break
3+
$87.79
4+
$84.25
9+
$82.47
19+
$79.81
49+
$78.04
99+
$73.60
499+
$62.08
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFLZ
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 49mm |
| A1 | 16mm |
| A2 | 69.7mm |
| A4 | 45mm |
| B | 65.1mm |
| e | 30mm |
| H | 238mm |
| H3 | 130mm |
| J | 202mm |
| L | 138mm |
| N | 18mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.73 kg |
