SKU: UCFS306D1-NTN
NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
NTN UCFS306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
$63.33
ex VAT
Regular price
Sale price
$63.33
ex VAT
In stock
Price Break
3+
$42.42
4+
$40.03
9+
$39.56
19+
$39.08
49+
$38.60
99+
$38.13
499+
$35.75
999+
$35.27
1999+
$34.79
2999+
$34.32
4999+
$33.36
Quantity
Couldn't load pickup availability
Description
Description
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFS
- Bolt Hole Centres:
- 95mm

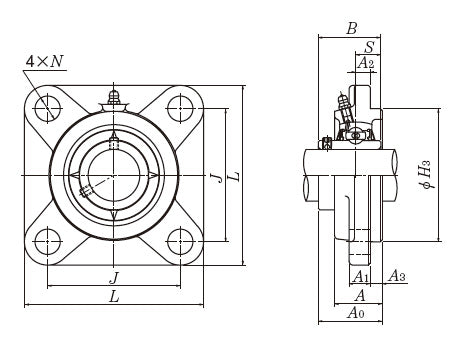

Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 125mm |
| J | 95mm |
| A<sub>2</sub> | 10mm |
| N | 16mm |
| A<sub>3</sub> | 8mm |
| A<sub>1</sub> | 15mm |
| A | 32mm |
| H<sub>3</sub> | 90mm |
| A<sub>0</sub> | 44mm |
| B | 43mm |
| S | 17mm |
| Fixing bolt | M14 |
| Mass | 1.8 kg |
