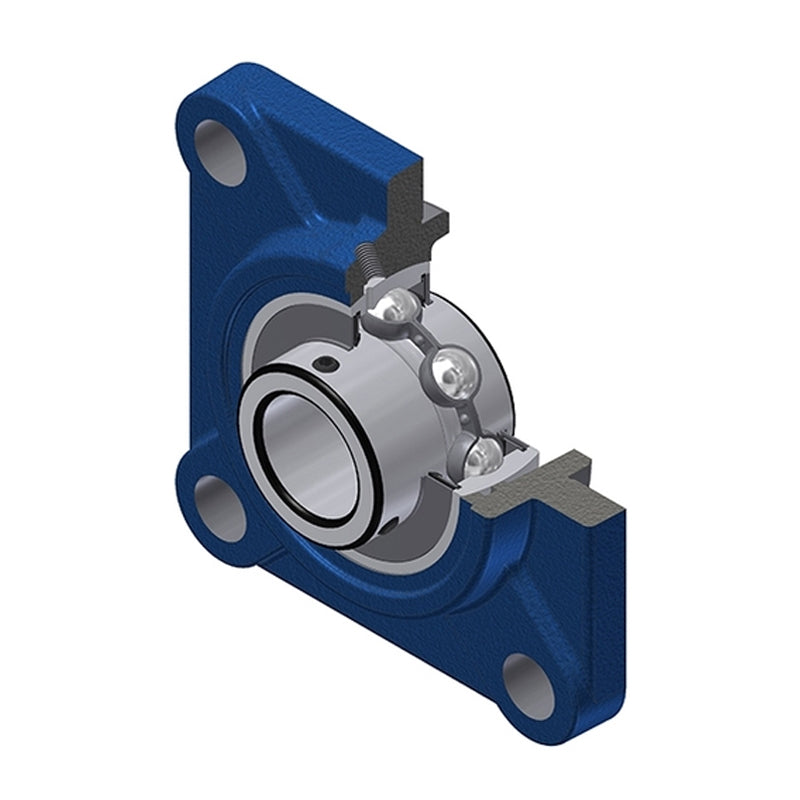

• SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFS311-SNR

SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days

SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
$132.34 ex VAT
$132.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $88.65
4+ $83.67
9+ $82.67
19+ $81.67
49+ $80.68
99+ $79.68
499+ $74.70
999+ $73.71
1999+ $72.71
2999+ $71.71
4999+ $69.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCFS
Bolt Hole Centres:
140mm
Technical
--- Dimensions
Shaft diameter d 55mm
A 52mm
A1 20mm
A2 58mm
A4 39mm
B 66mm
e 17mm
H3 150mm
J 140mm
L 185mm
N 23mm
S 25mm
G M6x1
--- Load rating
Dynamic load C 71.5 kN
Static load C0 44.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 5.7 kg
