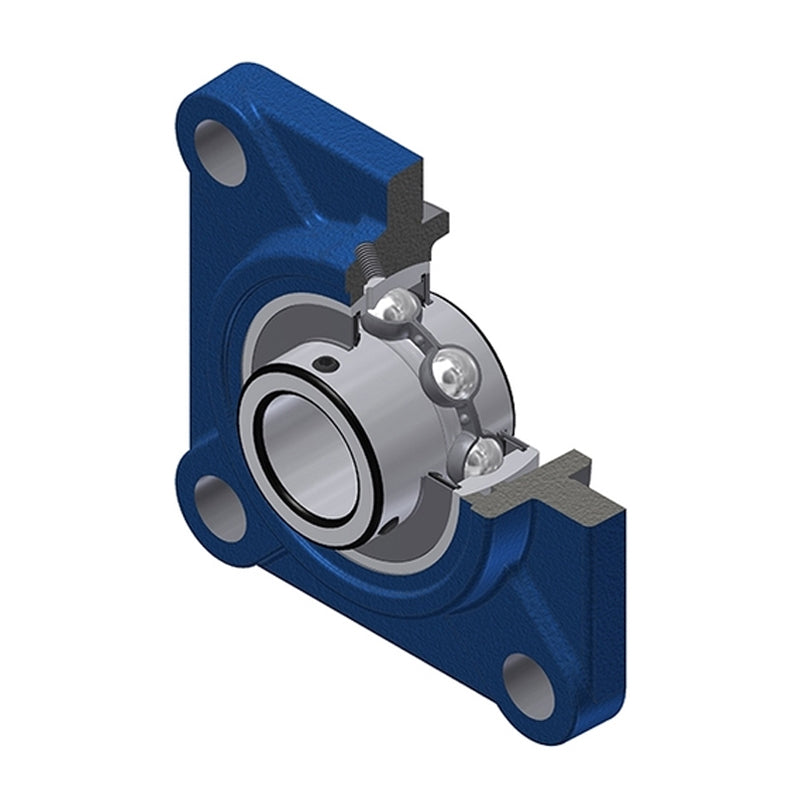

• SNR UCFS317 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFS317-SNR

SNR UCFS317 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days

SNR UCFS317 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
$334.27 ex VAT
$334.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $223.91
4+ $211.33
9+ $208.81
19+ $206.30
49+ $203.78
99+ $201.27
499+ $188.69
999+ $186.17
1999+ $183.66
2999+ $181.14
4999+ $176.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
85mm
Style:
UCFS
Bolt Hole Centres:
204mm
Technical
--- Dimensions
Shaft diameter d 85mm
A 74mm
A1 27mm
A2 80mm
A4 54mm
B 96mm
e 24mm
H3 220mm
J 204mm
L 260mm
N 31mm
S 40mm
G M10x1
--- Load rating
Dynamic load C 132.6 kN
Static load C0 96.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 64 Nm
Mass 17.34 kg
