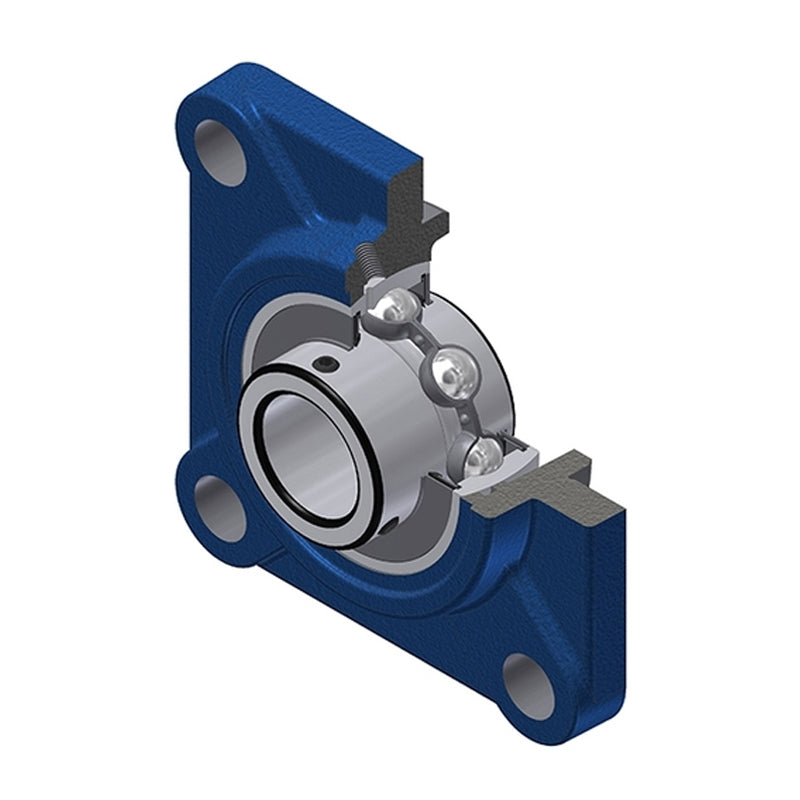

• SNR UCFS322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCFS322-SNR

SNR UCFS322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days

SNR UCFS322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
$681.34 ex VAT
$681.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $456.39
4+ $430.75
9+ $425.62
19+ $420.49
49+ $415.36
99+ $410.24
499+ $384.60
999+ $379.47
1999+ $374.34
2999+ $369.21
4999+ $358.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
110mm
Style:
UCFS
Bolt Hole Centres:
266mm
Technical
--- Dimensions
Shaft diameter d 110mm
A 96mm
A1 35mm
A2 106mm
A4 71mm
B 117mm
e 35mm
H3 300mm
J 266mm
L 340mm
N 41mm
S 46mm
G M10x1
--- Load rating
Dynamic load C 205 kN
Static load C0 178 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 75 Nm
Mass 38.3 kg
