• UCFX07 Metric Four Bolt Cast Iron Square Housing with 35mm Bore Insert
1 1

SKU: UCFX.07

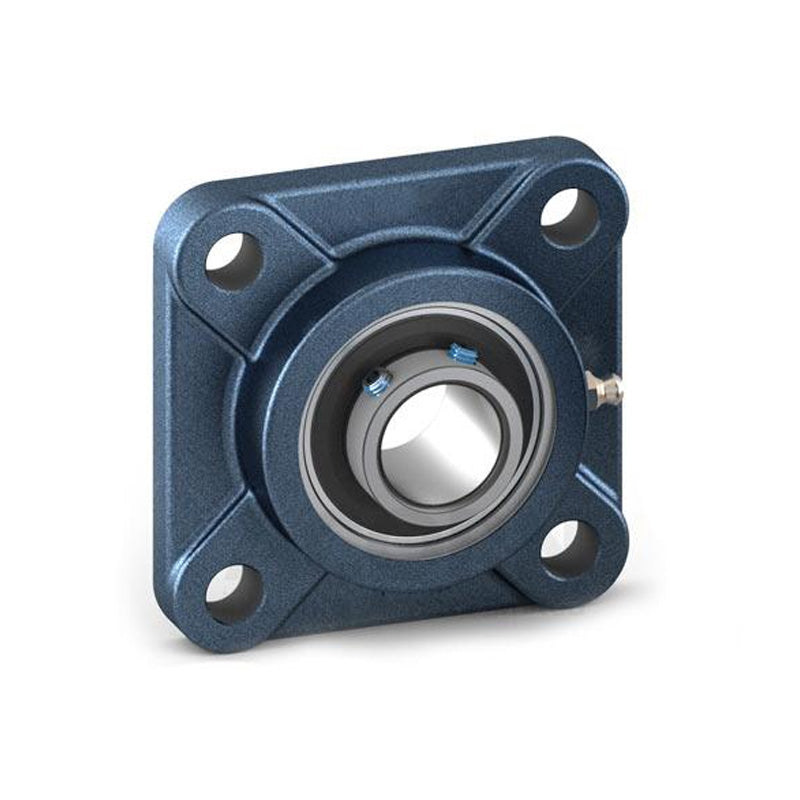

UCFX07 Metric Four Bolt Cast Iron Square Housing with 35mm Bore Insert

UCFX07 Metric Four Bolt Cast Iron Square Housing with 35mm Bore Insert
$32.19 ex VAT
$32.19 ex VAT
Sale Sold out

Equivalent to: MSF35

In stock

Price Break
3+ $21.56
4+ $20.35
9+ $20.11
19+ $19.86
49+ $19.62
99+ $19.38
499+ $18.17
999+ $17.93
1999+ $17.68
2999+ $17.44
4999+ $16.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Style:
UCFX
Bolt Hole Centres:
102mm
Technical
d 35mm
a 130mm
e 102mm
i 21mm
g 14mm
L 38mm
s 16mm
Z 51.2mm
Bi 49.2mm
n 19mm
Bolt Size M14
Weight 1.9 kg
Dynamic load 25560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
