• UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
1 1

SKU: UCFX.07-23

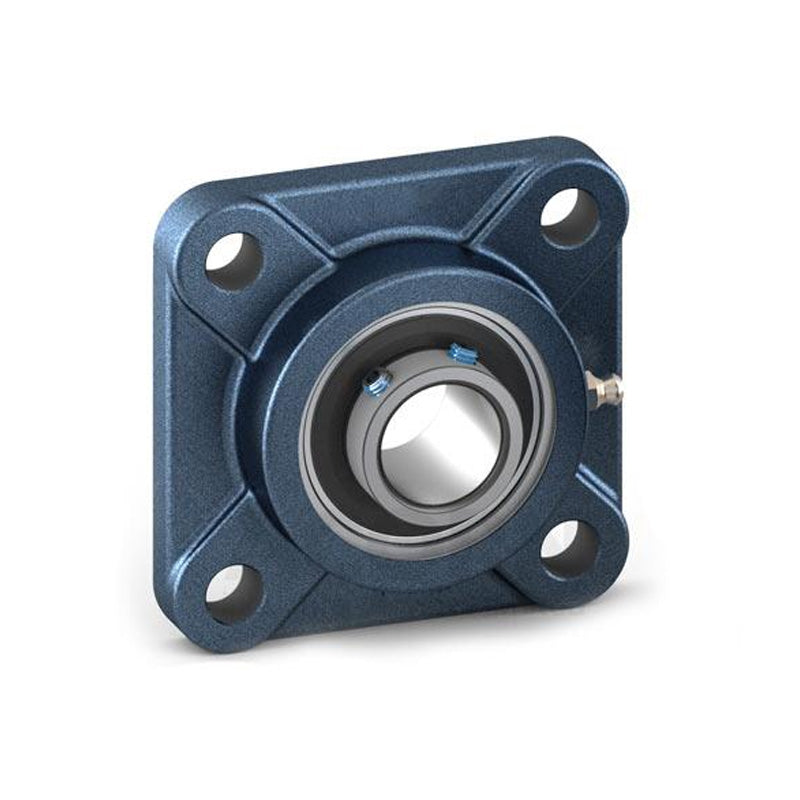

UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert

UCFX07-23 Imperial Four Bolt Cast Iron Square Housing with 1-7/16 inch Bore Insert
$32.41 ex VAT
$32.41 ex VAT
Sale Sold out

Equivalent to: MSF1-716

In stock

Price Break
3+ $21.71
4+ $20.49
9+ $20.24
19+ $20.00
49+ $19.75
99+ $19.51
499+ $18.29
999+ $18.05
1999+ $17.80
2999+ $17.56
4999+ $17.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
UCFX
Bolt Hole Centres:
102mm
Technical
d 1-7/16 inch
a 130mm
e 102mm
i 21mm
g 14mm
L 38mm
s 16mm
Z 51.2mm
Bi 49.2mm
n 19mm
Bolt Size M14
Weight 1.9 kg
Dynamic load 25560 kgf
Static load 1810 kgf
