• UCFX08-24 Imperial Four Bolt Cast Iron Square Housing with 1-1/2 inch Bore Insert
1 1

SKU: UCFX.08-24

UCFX08-24 Imperial Four Bolt Cast Iron Square Housing with 1-1/2 inch Bore Insert

UCFX08-24 Imperial Four Bolt Cast Iron Square Housing with 1-1/2 inch Bore Insert
$38.45 ex VAT
$38.45 ex VAT
Sale Sold out

Equivalent to: MSF1-1/2

In stock

Price Break
3+ $25.75
4+ $24.31
9+ $24.02
19+ $23.73
49+ $23.44
99+ $23.15
499+ $21.70
999+ $21.41
1999+ $21.12
2999+ $20.83
4999+ $20.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

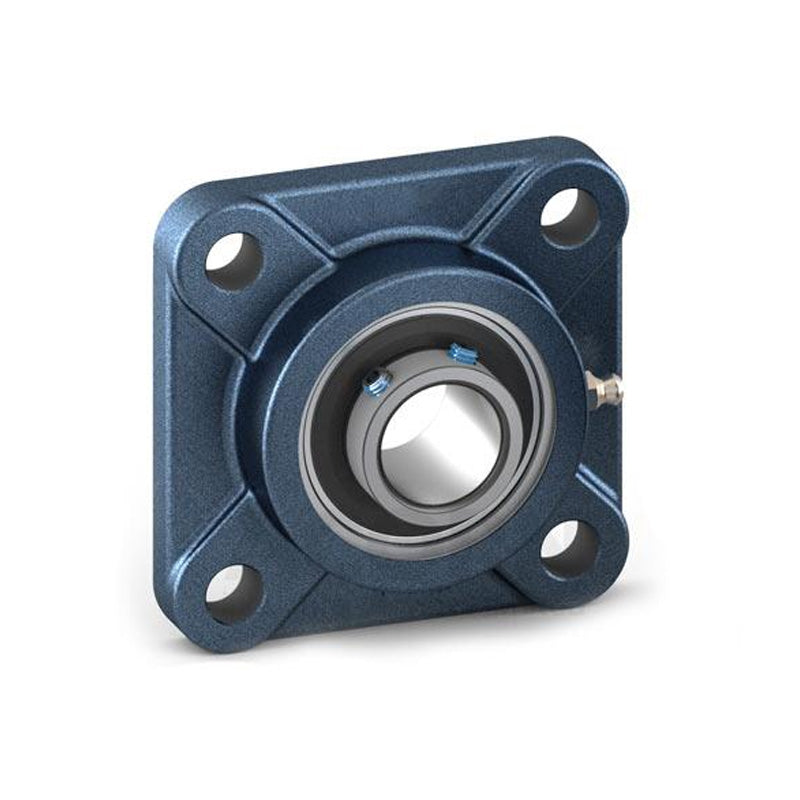

UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
UCFX
Bolt Hole Centres:
105mm
Technical
d 1-1/2 inch
a 137mm
e 105mm
i 22mm
g 14mm
L 40mm
s 19mm
Z 52.2mm
Bi 49.2mm
n 19mm
Bolt Size M16
Weight 2.1 kg
Dynamic load 2650 kgf
Static load 1910 kgf
Rec max speed 3700 rpm
