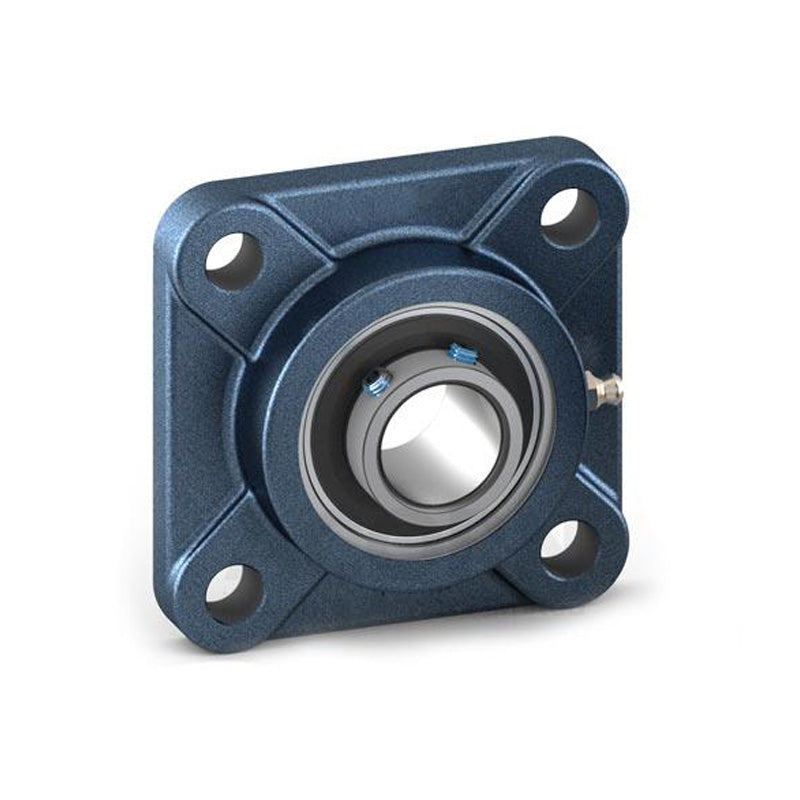

• UCFX09-27 Imperial Four Bolt Cast Iron Square Housing with 1-11/16 inch Bore Insert
1 1

SKU: UCFX.09-27

UCFX09-27 Imperial Four Bolt Cast Iron Square Housing with 1-11/16 inch Bore Insert

UCFX09-27 Imperial Four Bolt Cast Iron Square Housing with 1-11/16 inch Bore Insert
$51.95 ex VAT
$51.95 ex VAT
Sale Sold out

In stock

Price Break
3+ $34.80
4+ $32.84
9+ $32.45
19+ $32.06
49+ $31.67
99+ $31.28
499+ $29.32
999+ $28.93
1999+ $28.54
2999+ $28.15
4999+ $27.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Style:
UCFX
Bolt Hole Centres:
111mm
Technical
d 1-11/16 inch
a 143mm
e 111mm
i 23mm
g 14mm
L 40mm
s 19mm
Z 55.6mm
Bi 51.6mm
n 19mm
Bolt Size M16
Weight 2.5 kg
Dynamic load 2750 kgf
Static load 2020 kgf
