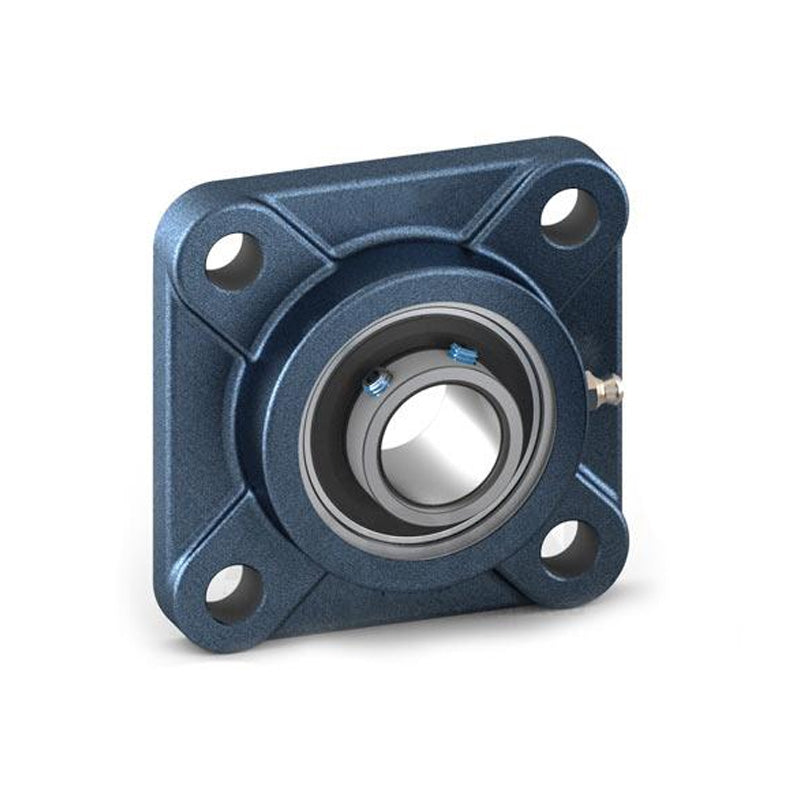

• UCFX10 Metric Four Bolt Cast Iron Square Housing with 50mm Bore Insert
1 1

SKU: UCFX.10

UCFX10 Metric Four Bolt Cast Iron Square Housing with 50mm Bore Insert

UCFX10 Metric Four Bolt Cast Iron Square Housing with 50mm Bore Insert
$58.33 ex VAT
$58.33 ex VAT
Sale Sold out

Equivalent to: MSF50

In stock

Price Break
3+ $39.07
4+ $36.88
9+ $36.44
19+ $36.00
49+ $35.56
99+ $35.12
499+ $32.93
999+ $32.49
1999+ $32.05
2999+ $31.61
4999+ $30.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
50mm
Style:
UCFX
Bolt Hole Centres:
130mm
Technical
d 50mm
a 162mm
e 130mm
i 26mm
g 20mm
L 44mm
s 19mm
Z 59.4mm
Bi 55.6mm
n 22.2mm
Bolt Size M16
Weight 3.6 kg
Dynamic load 3400 kgf
Static load 2550 kgf
Rec max speed 3100 rpm
