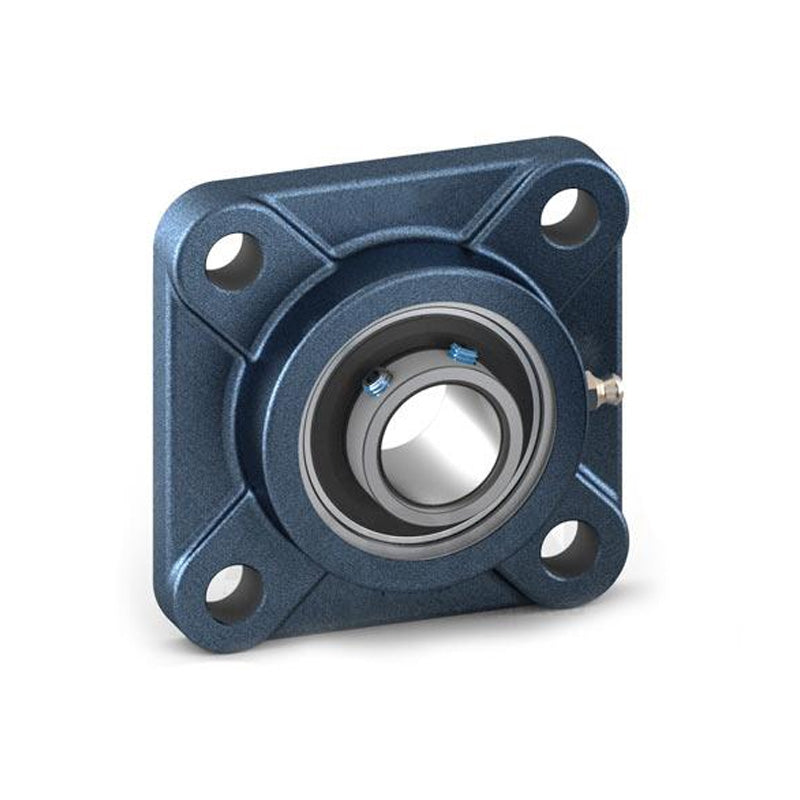

• UCFX11 Metric Four Bolt Cast Iron Square Housing with 55mm Bore Insert
1 1

SKU: UCFX.11

UCFX11 Metric Four Bolt Cast Iron Square Housing with 55mm Bore Insert

UCFX11 Metric Four Bolt Cast Iron Square Housing with 55mm Bore Insert
$75.47 ex VAT
$75.47 ex VAT
Sale Sold out

Equivalent to: MSF55

In stock

Price Break
3+ $50.56
4+ $47.72
9+ $47.15
19+ $46.58
49+ $46.01
99+ $45.44
499+ $42.60
999+ $42.03
1999+ $41.47
2999+ $40.90
4999+ $39.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
55mm
Style:
UCFX
Bolt Hole Centres:
143mm
Technical
d 55mm
a 175mm
e 143mm
i 29mm
g 20mm
L 49mm
s 19mm
Z 68.7mm
Bi 65.7mm
n 25.4mm
Bolt Size M16
Weight 4.7 kg
Dynamic load 4100 kgf
Static load 3150 kgf
Rec max speed 2800 rpm
