• UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
1 1

SKU: UCFX.14

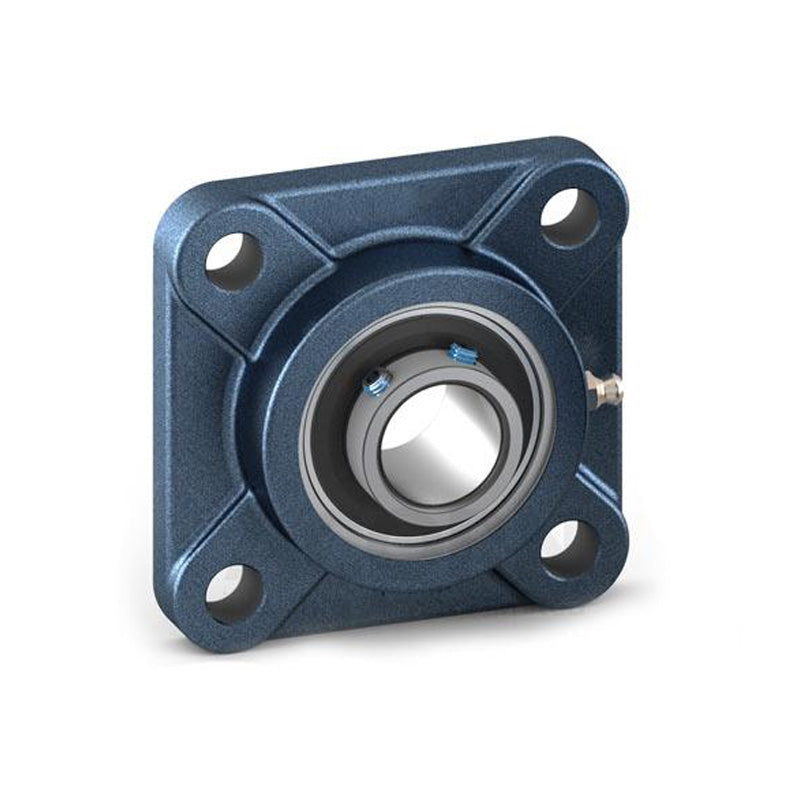

UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert

UCFX14 Metric Four Bolt Cast Iron Square Housing with 70mm Bore Insert
$149.12 ex VAT
$149.12 ex VAT
Sale Sold out

Equivalent to: MSF70

In stock

Price Break
3+ $99.89
4+ $94.27
9+ $93.15
19+ $92.03
49+ $90.91
99+ $89.78
499+ $84.17
999+ $83.05
1999+ $81.93
2999+ $80.81
4999+ $78.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Style:
UCFX
Bolt Hole Centres:
152mm
Technical
d 70mm
a 197mm
e 152mm
i 37mm
g 24mm
L 60mm
s 23mm
Z 81.5mm
Bi 77.8mm
n 33.3mm
Bolt Size M20
Weight 7.3 kg
Dynamic load 5190 kgf
Static load 4190 kgf
Rec max speed 2300 rpm
Reviews
View full details
