• UCFX15 Metric Four Bolt Cast Iron Square Housing with 75mm Bore Insert
1 1

SKU: UCFX.15

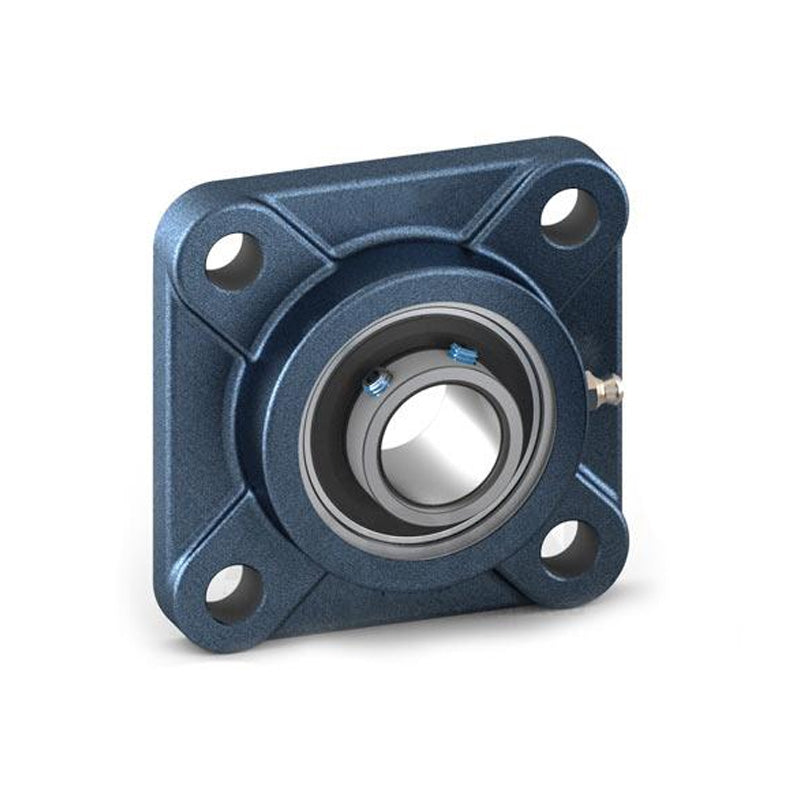

UCFX15 Metric Four Bolt Cast Iron Square Housing with 75mm Bore Insert

UCFX15 Metric Four Bolt Cast Iron Square Housing with 75mm Bore Insert
$183.90 ex VAT
$183.90 ex VAT
Sale Sold out

Equivalent to: MSF75

In stock

Price Break
3+ $123.19
4+ $116.27
9+ $114.88
19+ $113.50
49+ $112.12
99+ $110.73
499+ $103.81
999+ $102.43
1999+ $101.04
2999+ $99.66
4999+ $96.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
75mm
Style:
UCFX
Bolt Hole Centres:
152mm
Technical
d 75mm
a 197mm
e 152mm
i 40mm
g 24mm
L 68mm
s 23mm
Z 89.3mm
Bi 82.6mm
n 33.3mm
Bolt Size M20
Weight 8 kg
Dynamic load 5700 kgf
Static load 4550 kgf
Rec max speed 2150 rpm
