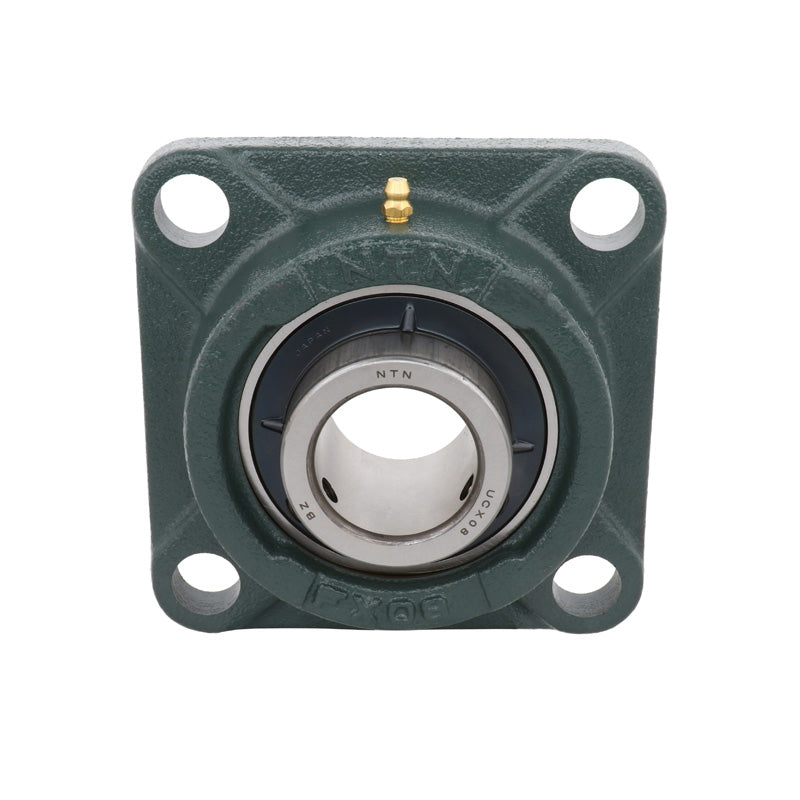

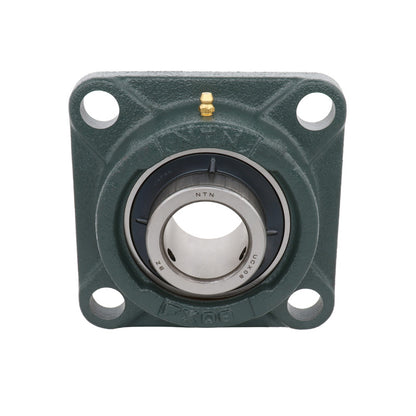

• NTN UCFX08D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
  • NTN
1 2

SKU: UCFX08D1-NTN

NTN UCFX08D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert

NTN UCFX08D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
$52.92 ex VAT
$52.92 ex VAT
Sale Sold out

In stock

Price Break
3+ $35.45
4+ $33.46
9+ $33.06
19+ $32.66
49+ $32.26
99+ $31.86
499+ $29.87
999+ $29.47
1999+ $29.08
2999+ $28.68
4999+ $27.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Style:
UCFX
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 40mm
L 137mm
J 105mm
A<sub>2</sub> 22mm
A<sub>1</sub> 14mm
A 40mm
N 19mm
A<sub>0</sub> 52.2mm
B 49.2mm
S 19mm
Fixing bolt M16
--- Load rating
Dynamic load C<sub>r</sub> 36 kN
Static load C<sub>0r</sub> 20.4 kN
Fatigue load limit C<sub>u</sub> 1.6 kN
--- Unit information
Mass 2.3 kg
