SKU: UCFX13-208D1-NTN

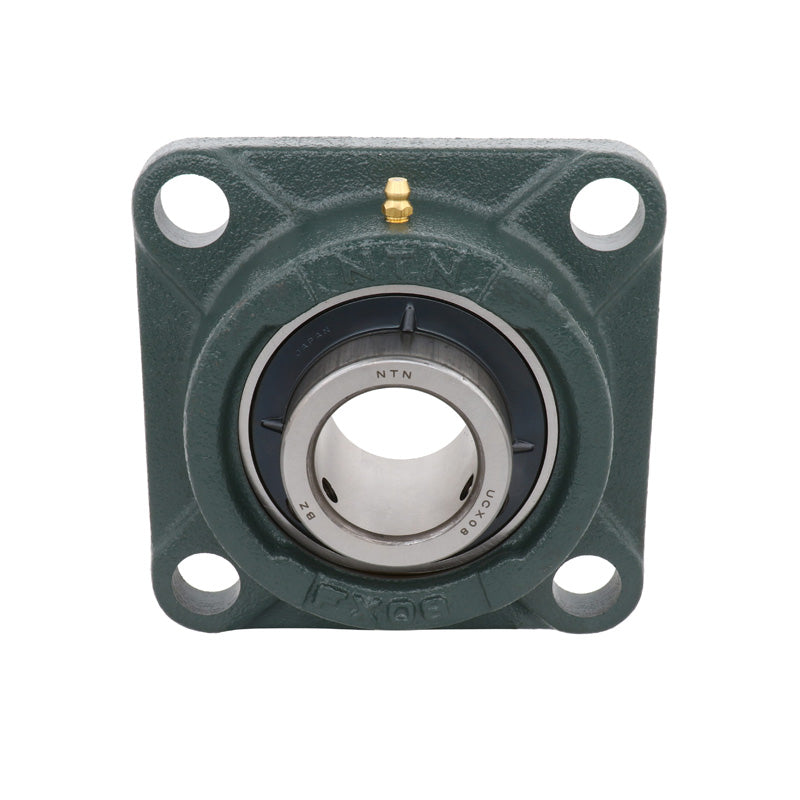

NTN UCFX13-208D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
NTN UCFX13-208D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
$265.18
ex VAT
Regular price
Sale price
$265.18
ex VAT
In stock
Price Break
3+
$197.55
4+
$189.57
9+
$185.58
19+
$179.60
49+
$175.60
99+
$165.63
499+
$139.69
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCFX or MSF Series 4 Bolt Square Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCFX
- Bolt Hole Centres:
- 5-55/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-1/2 inch |
| L | 7-3/8 inch |
| J | 5-55/64 inch |
| A<sub>2</sub> | 1-11/32 inch |
| A<sub>1</sub> | 13/16 inch |
| A | 2-5/16 inch |
| N | 3/4 inch |
| A<sub>0</sub> | 3-3/32 inch |
| B | 2.937 inch |
| S | 1.189 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 15 lbs |
