SKU: UCHA204

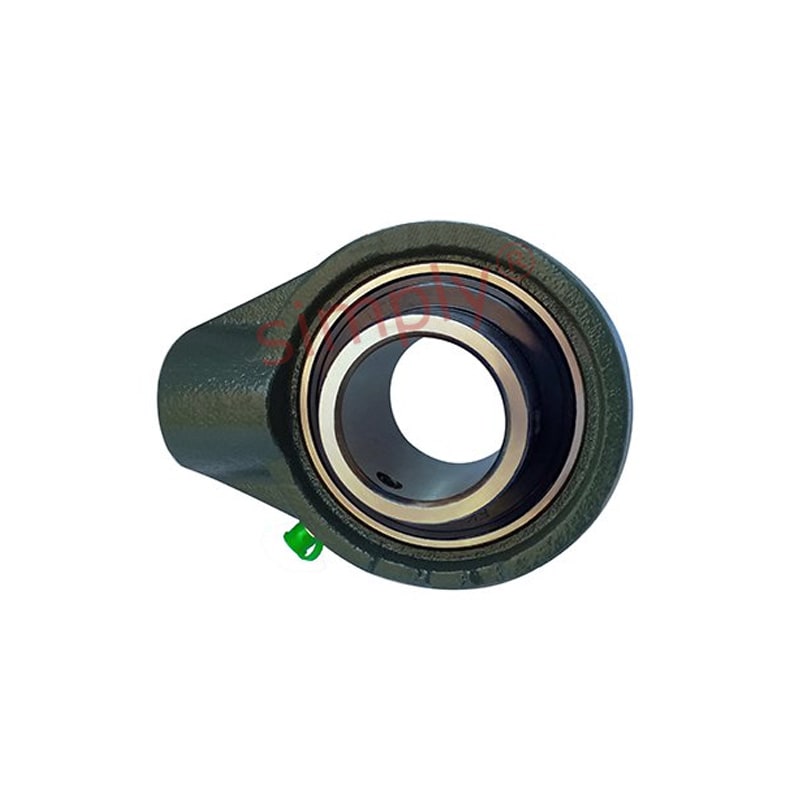

UCHA204 Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert
UCHA204 Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert
Regular price
$17.29
ex VAT
Regular price
Sale price
$17.29
ex VAT
In stock
Price Break
3+
$11.58
4+
$10.93
9+
$10.80
19+
$10.67
49+
$10.54
99+
$10.41
499+
$9.76
999+
$9.63
1999+
$9.50
2999+
$9.37
4999+
$9.11
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCHA
Technical
Technical
| d | 20mm |
|---|---|
| h | 2-33/64 inch |
| w | 3-25/32 inch |
| b | 2-33/64 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bearing no | UC204 |
| Housing no | HA204 |
| Weight | 0.596 kg |
