SKU: UCHA207-23

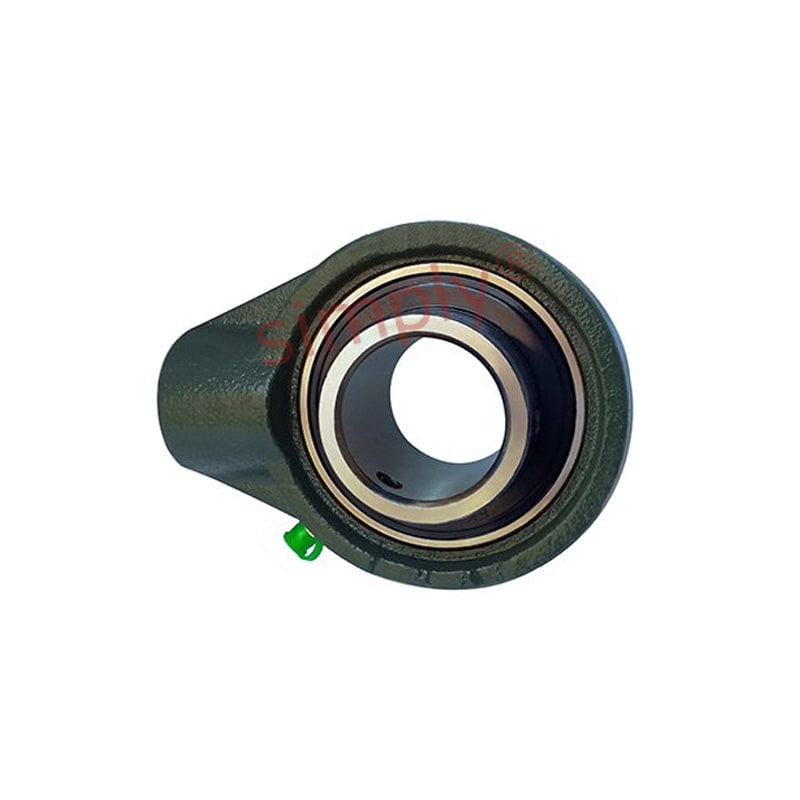

UCHA207-23 Imperial Cast Iron Hanger Bearing Unit with 1-7/16 inch Bore Insert
UCHA207-23 Imperial Cast Iron Hanger Bearing Unit with 1-7/16 inch Bore Insert
Regular price
$32.93
ex VAT
Regular price
Sale price
$32.93
ex VAT
In stock
Price Break
3+
$22.06
4+
$20.82
9+
$20.57
19+
$20.32
49+
$20.07
99+
$19.83
499+
$18.59
999+
$18.34
1999+
$18.09
2999+
$17.84
4999+
$17.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- UCHA
Technical
Technical
| d | 1-7/16 inch |
|---|---|
| h | 2-3/4 inch |
| w | 4-9/16 inch |
| b | 3-5/8 inch |
| c | 0 inch |
| a | 1-37/64 inch |
| s | G-3/4 |
| l | 3/4 inch |
| B | 1.689 inch |
| n | 0.689 inch |
| Bearing no | UC207-23 |
| Housing no | HA207 |
| Weight | 1.074 kg |
