SKU: UCHA208

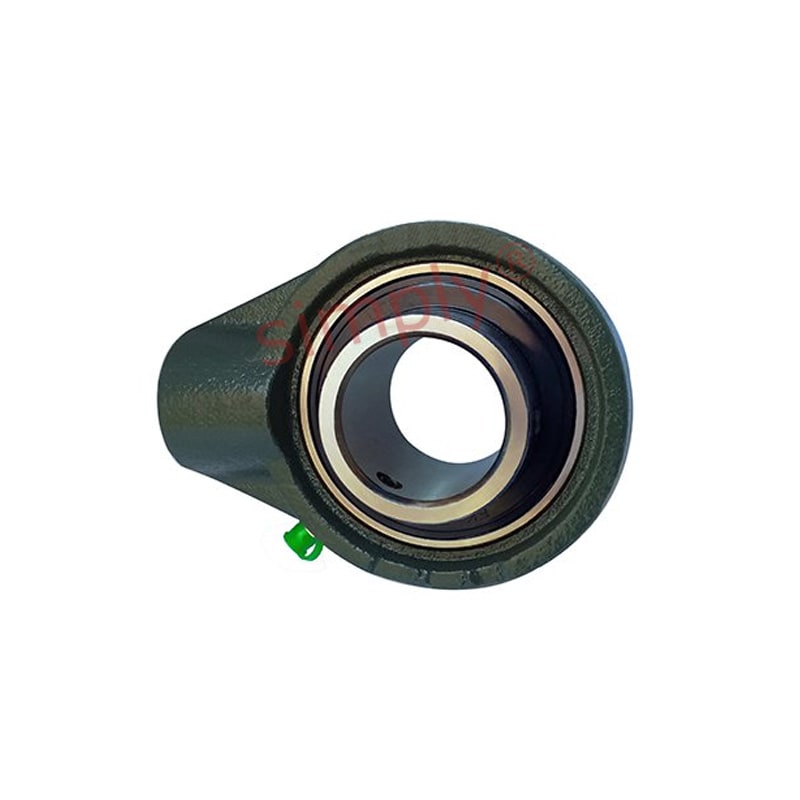

UCHA208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert
UCHA208 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert
Regular price
$38.20
ex VAT
Regular price
Sale price
$38.20
ex VAT
In stock
Price Break
3+
$25.59
4+
$24.15
9+
$23.86
19+
$23.58
49+
$23.29
99+
$23.00
499+
$21.56
999+
$21.28
1999+
$20.99
2999+
$20.70
4999+
$20.13
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCHA
Technical
Technical
| d | 40mm |
|---|---|
| h | 73mm |
| w | 121mm |
| b | 96mm |
| c | 2mm |
| a | 40mm |
| s | G-3/4 |
| l | 19mm |
| B | 49.2mm |
| n | 19mm |
| Bearing no | UC208 |
| Housing no | HA208 |
| Weight | 1.218 kg |
