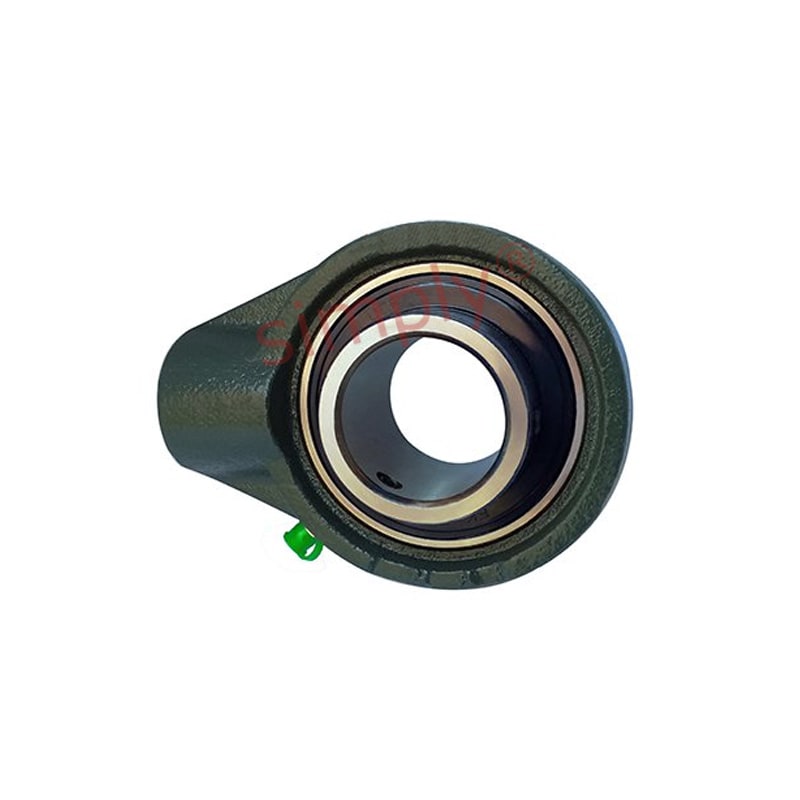

UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
UCHA210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert
Regular price
$55.39
ex VAT
Regular price
Sale price
$55.39
ex VAT
In stock
Price Break
3+
$37.10
4+
$35.02
9+
$34.60
19+
$34.18
49+
$33.77
99+
$33.35
499+
$31.26
999+
$30.85
1999+
$30.43
2999+
$30.01
4999+
$29.18
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCHA
Technical
Technical
| d | 50mm |
|---|---|
| h | 83mm |
| w | 142mm |
| b | 118mm |
| c | 5mm |
| a | 48mm |
| s | G1 |
| l | 21mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UC210 |
| Housing no | HA210 |
| Weight | 2.04 kg |
