SKU: UCHA210-32

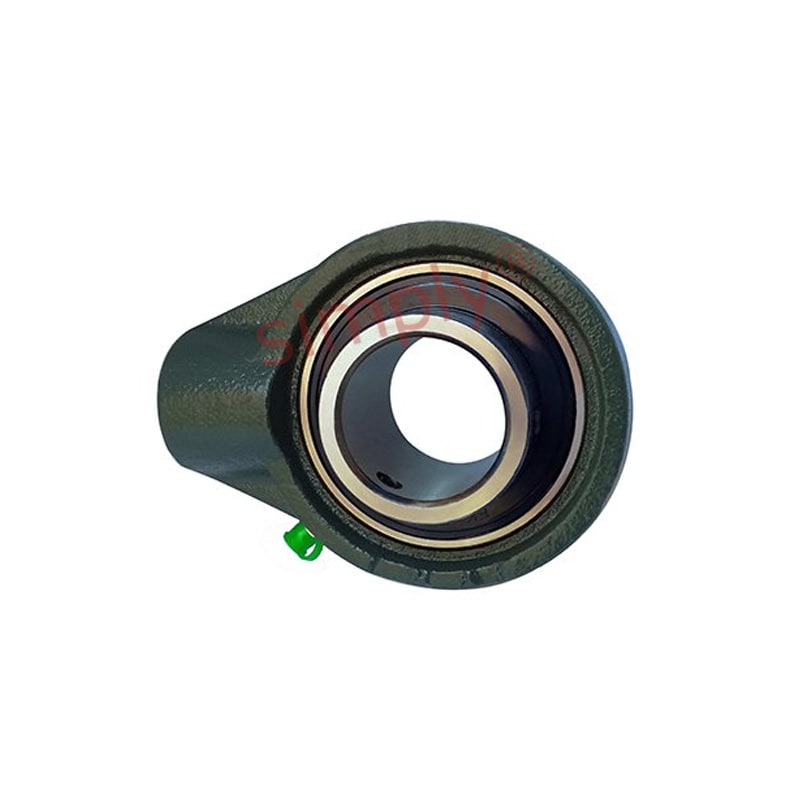

UCHA210-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
UCHA210-32 Imperial Cast Iron Hanger Bearing Unit with 2 inch Bore Insert
Regular price
$64.18
ex VAT
Regular price
Sale price
$64.18
ex VAT
In stock
Price Break
3+
$42.99
4+
$40.57
9+
$40.09
19+
$39.61
49+
$39.12
99+
$38.64
499+
$36.22
999+
$35.74
1999+
$35.26
2999+
$34.78
4999+
$33.81
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCHA
Technical
Technical
| d | 2 inch |
|---|---|
| h | 3-17/64 inch |
| w | 5-19/32 inch |
| b | 4-41/64 inch |
| c | 13/64 inch |
| a | 1-57/64 inch |
| s | G1 |
| l | 53/64 inch |
| B | 2.0315 inch |
| n | 0.748 inch |
| Bearing no | UC210-32 |
| Housing no | HA210 |
| Weight | 2.02 kg |
