SKU: UCHA211-34

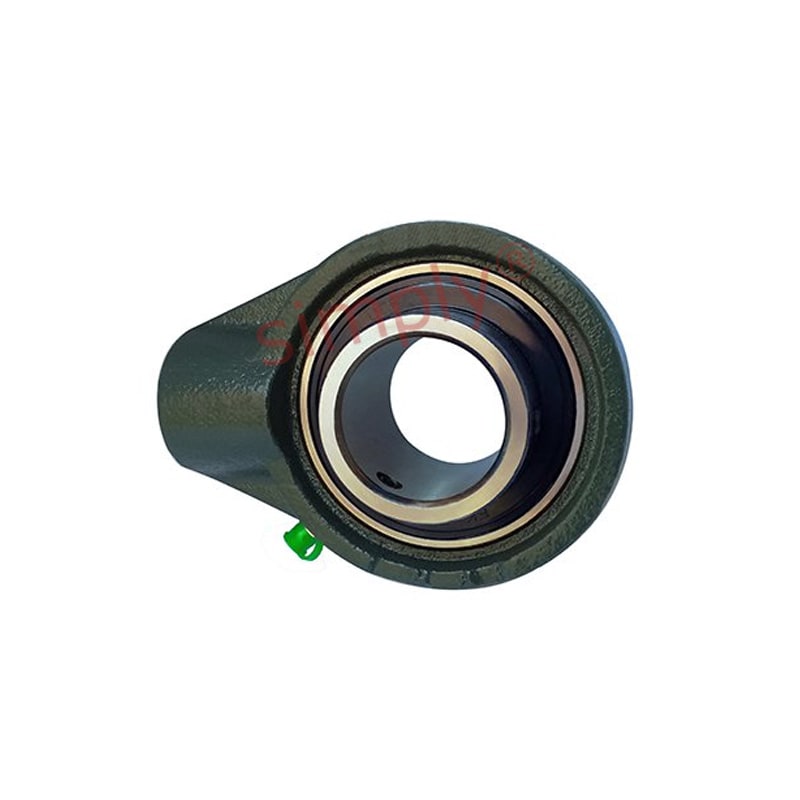

UCHA211-34 Imperial Cast Iron Hanger Bearing Unit with 2-1/8 inch Bore Insert
UCHA211-34 Imperial Cast Iron Hanger Bearing Unit with 2-1/8 inch Bore Insert
Regular price
$68.48
ex VAT
Regular price
Sale price
$68.48
ex VAT
In stock
Price Break
3+
$45.86
4+
$43.28
9+
$42.77
19+
$42.25
49+
$41.74
99+
$41.22
499+
$38.65
999+
$38.13
1999+
$37.62
2999+
$37.10
4999+
$36.07
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- UCHA
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| h | 3-27/64 inch |
| w | 5-29/32 inch |
| b | 4-61/64 inch |
| c | 9/32 inch |
| a | 2-23/64 inch |
| s | G1-1/4 |
| l | 63/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UC211-34 |
| Housing no | HA211 |
| Weight | 2.497 kg |
Reviews
Reviews
☆☆☆☆☆ (0 total reviews)
