SKU: UCHA212

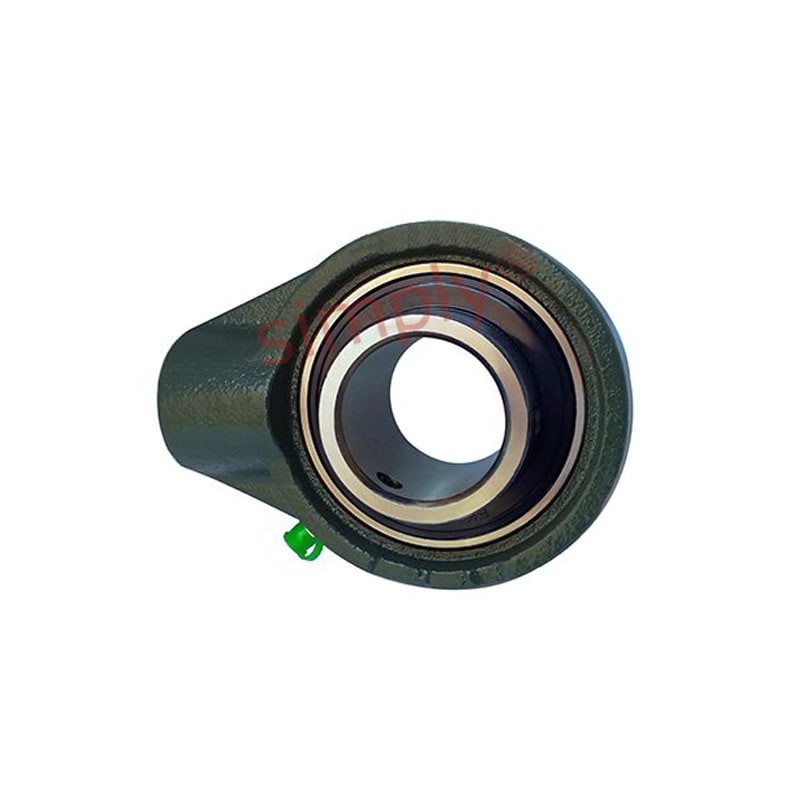

UCHA212 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert
UCHA212 Metric Cast Iron Hanger Bearing Unit with 60mm Bore Insert
Regular price
$88.90
ex VAT
Regular price
Sale price
$88.90
ex VAT
In stock
Price Break
3+
$59.55
4+
$56.21
9+
$55.54
19+
$54.87
49+
$54.20
99+
$53.53
499+
$50.19
999+
$49.52
1999+
$48.85
2999+
$48.18
4999+
$46.84
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCHA
Technical
Technical
| d | 60mm |
|---|---|
| h | 102mm |
| w | 173mm |
| b | 142mm |
| c | 9mm |
| a | 60mm |
| s | G1-1/4 |
| l | 28mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UC212 |
| Housing no | HA212 |
| Weight | 3.555 kg |
