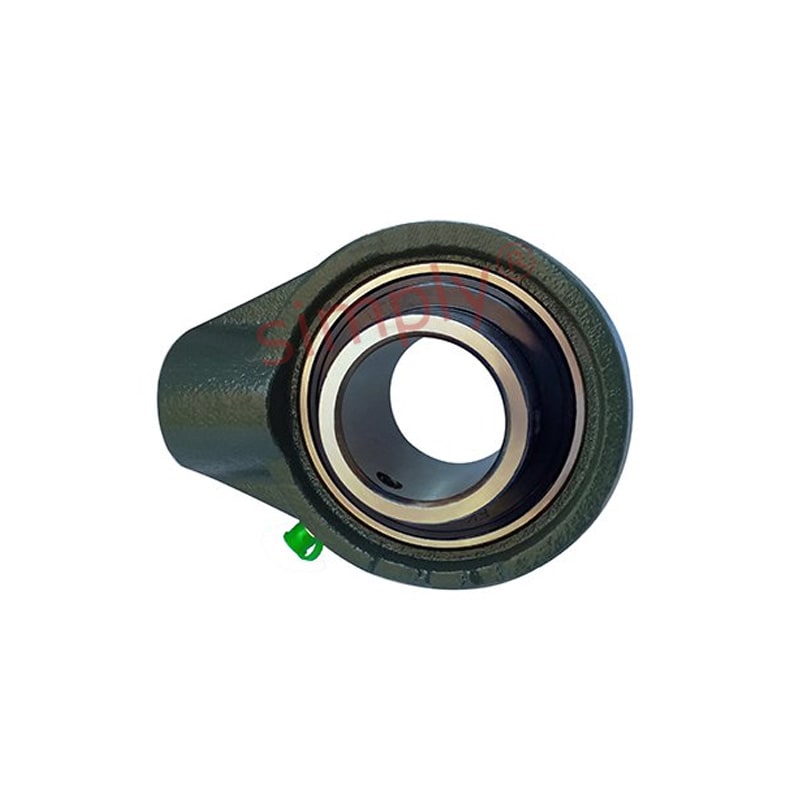

UCHA215 Metric Cast Iron Hanger Bearing Unit with 75mm Bore Insert
UCHA215 Metric Cast Iron Hanger Bearing Unit with 75mm Bore Insert
Regular price
$277.54
ex VAT
Regular price
Sale price
$277.54
ex VAT
In stock
Price Break
3+
$185.87
4+
$175.43
9+
$173.34
19+
$171.25
49+
$169.16
99+
$167.08
499+
$156.63
999+
$154.55
1999+
$152.46
2999+
$150.37
4999+
$146.19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCHA
Technical
Technical
| d | 75mm |
|---|---|
| h | 117mm |
| w | 200mm |
| b | 166mm |
| c | 9.5mm |
| a | 70mm |
| s | G1-1/2 |
| l | 32mm |
| B | 77.8mm |
| n | 33.3mm |
| Bearing no | UC215 |
| Housing no | HA215 |
| Weight | 5.414 kg |
