SKU: UCHB207D1-NTN

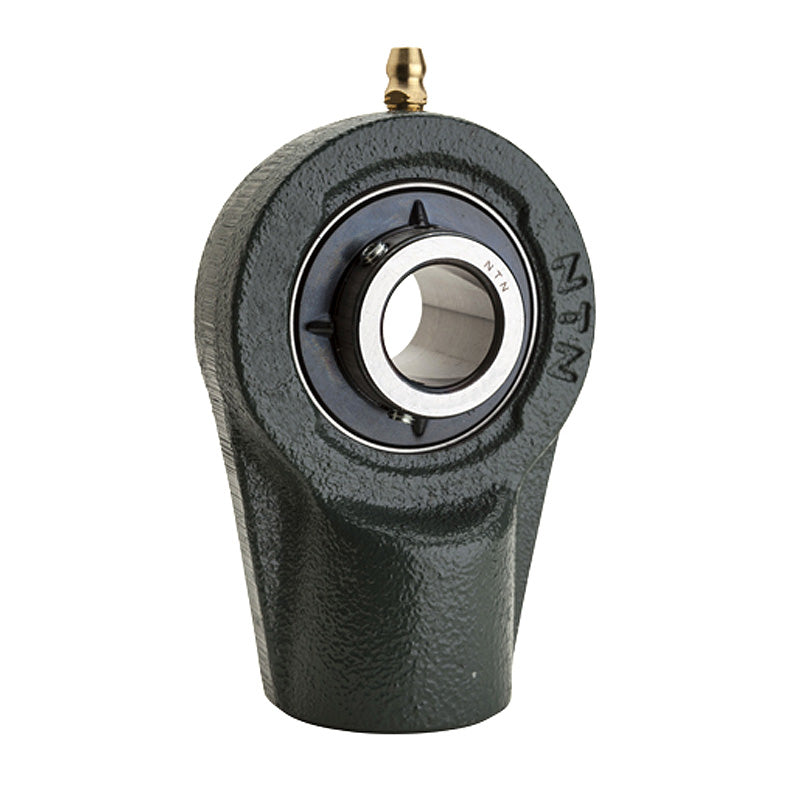

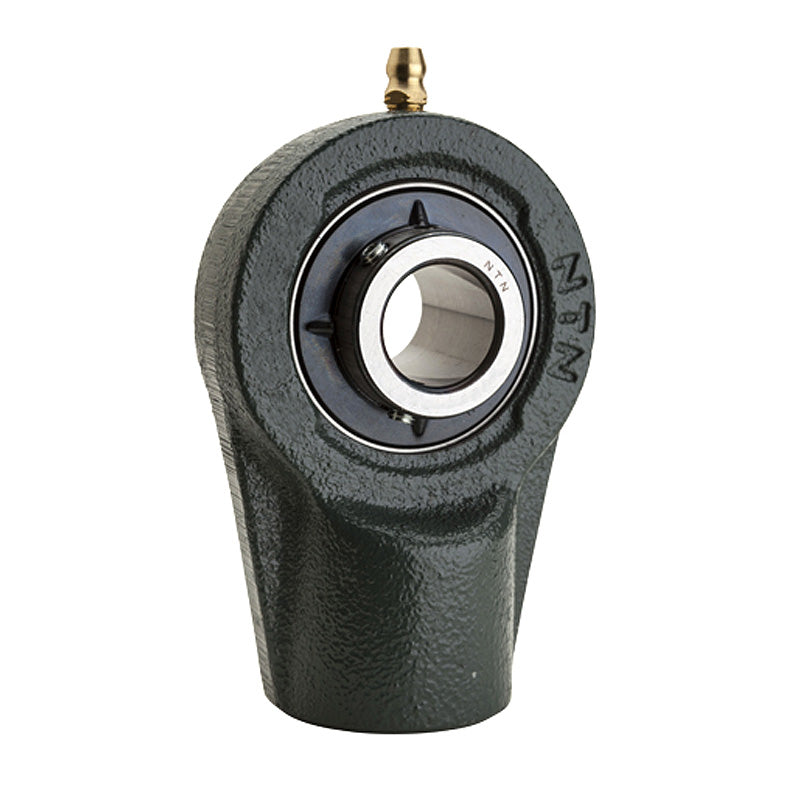

NTN UCHB207D1 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
NTN UCHB207D1 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert - Allow 2-3 Days
Regular price
$73.55
ex VAT
Regular price
Sale price
$73.55
ex VAT
In stock
Price Break
3+
$54.80
4+
$52.58
9+
$51.48
19+
$49.82
49+
$48.71
99+
$45.94
499+
$38.75
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| L | 92mm |
| H<sub>1</sub> | 116mm |
| c | 0mm |
| A | 30mm |
| H | 70mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 42.9mm |
| S | 17.5mm |
| Mass | 1.2 kg |
