SKU: UCHB211D1-NTN

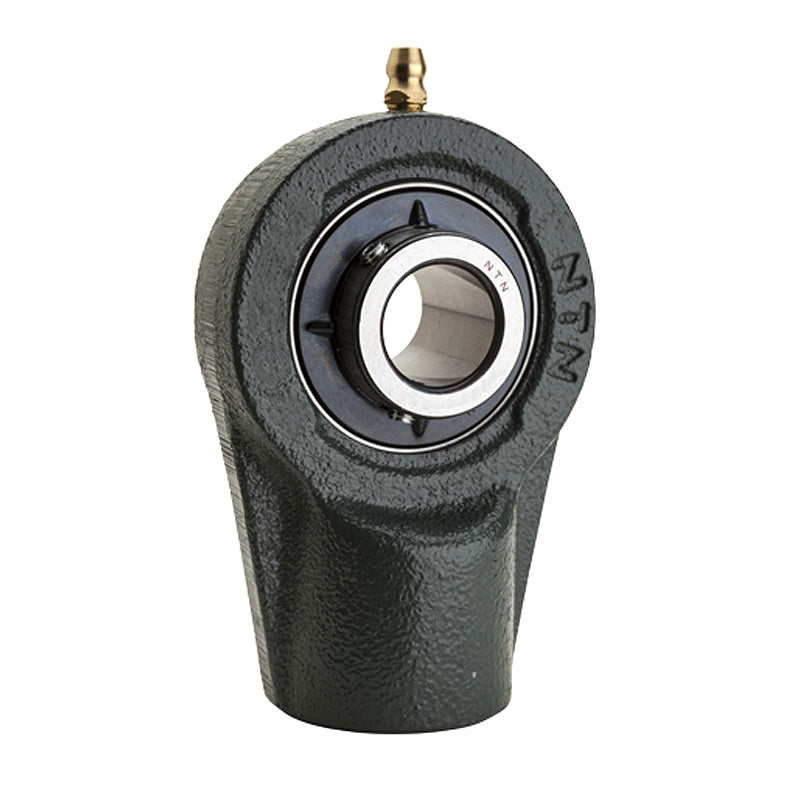

NTN UCHB211D1 Metric Cast Iron Hanger Bearing Unit with 55mm Bore Insert - Allow 2-3 Days
NTN UCHB211D1 Metric Cast Iron Hanger Bearing Unit with 55mm Bore Insert - Allow 2-3 Days
Regular price
$117.77
ex VAT
Regular price
Sale price
$117.77
ex VAT
In stock
Price Break
3+
$87.73
4+
$84.19
9+
$82.42
19+
$79.76
49+
$77.99
99+
$73.55
499+
$62.03
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| L | 126mm |
| H<sub>1</sub> | 158mm |
| c | 7mm |
| A | 38mm |
| H | 95mm |
| N | RP1-1/4 |
| D | 60mm |
| j | 25mm |
| B | 55.6mm |
| S | 22.2mm |
| Mass | 2.8 kg |
