SKU: UCHB213-208D1-NTN

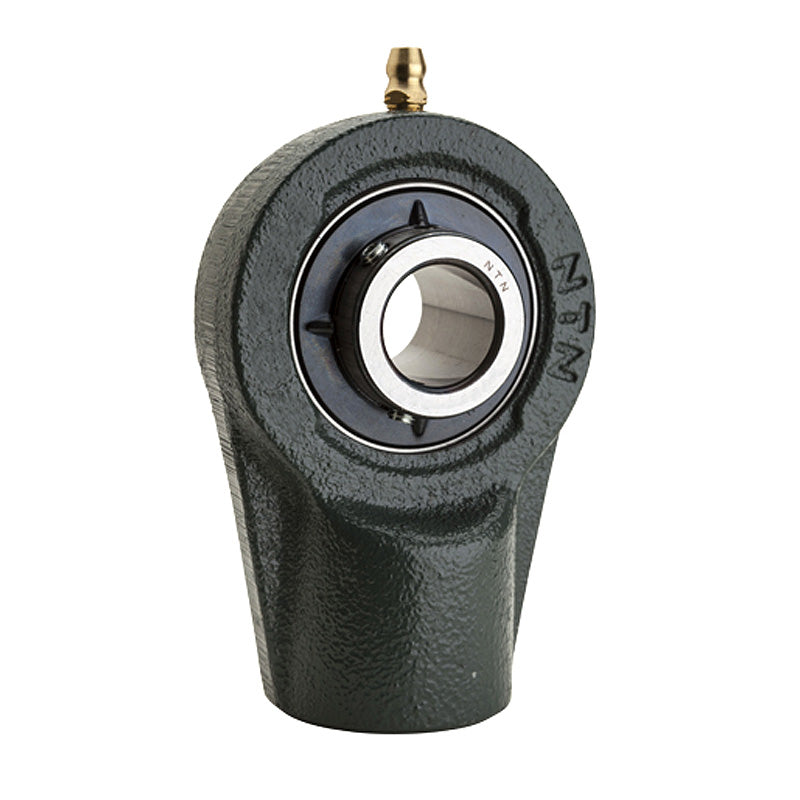

NTN UCHB213-208D1 Imperial Cast Iron Hanger Bearing Unit with 2-1/2 inch Bore Insert - Allow 2-3 Days
NTN UCHB213-208D1 Imperial Cast Iron Hanger Bearing Unit with 2-1/2 inch Bore Insert - Allow 2-3 Days
Out of stock
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 2-1/2 inch |
|---|---|
| L | 6-17/32 inch |
| H<sub>1</sub> | 7-7/8 inch |
| c | 3/8 inch |
| A | 1-23/32 inch |
| H | 4-39/64 inch |
| N | RP1-1/2 |
| D | 2-3/4 inch |
| j | 1-1/4 inch |
| B | 2.563 inch |
| S | 1 inch |
| Mass | 12.6 lbs |
