SKU: UCHB213D1-NTN

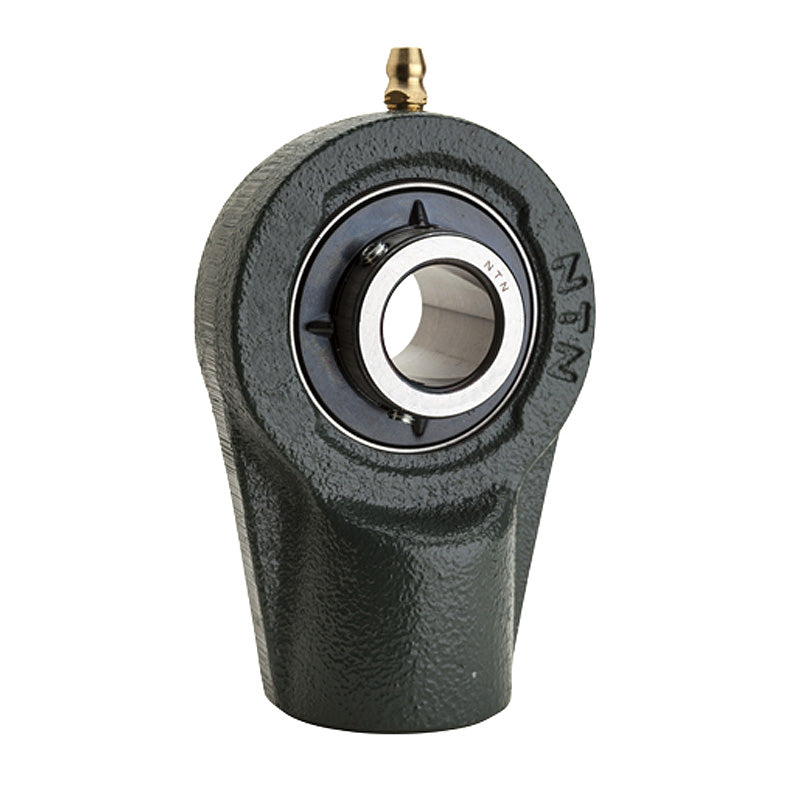

NTN UCHB213D1 Metric Cast Iron Hanger Bearing Unit with 65mm Bore Insert - Allow 2-3 Days
NTN UCHB213D1 Metric Cast Iron Hanger Bearing Unit with 65mm Bore Insert - Allow 2-3 Days
Regular price
$206.07
ex VAT
Regular price
Sale price
$206.07
ex VAT
In stock
Price Break
3+
$153.52
4+
$147.32
9+
$144.22
19+
$139.56
49+
$136.46
99+
$128.71
499+
$108.55
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 65mm |
|---|---|
| L | 166mm |
| H<sub>1</sub> | 200mm |
| c | 9.5mm |
| A | 44mm |
| H | 117mm |
| N | RP1-1/2 |
| D | 70mm |
| j | 32mm |
| B | 65.1mm |
| S | 25.4mm |
| Mass | 5.7 kg |
