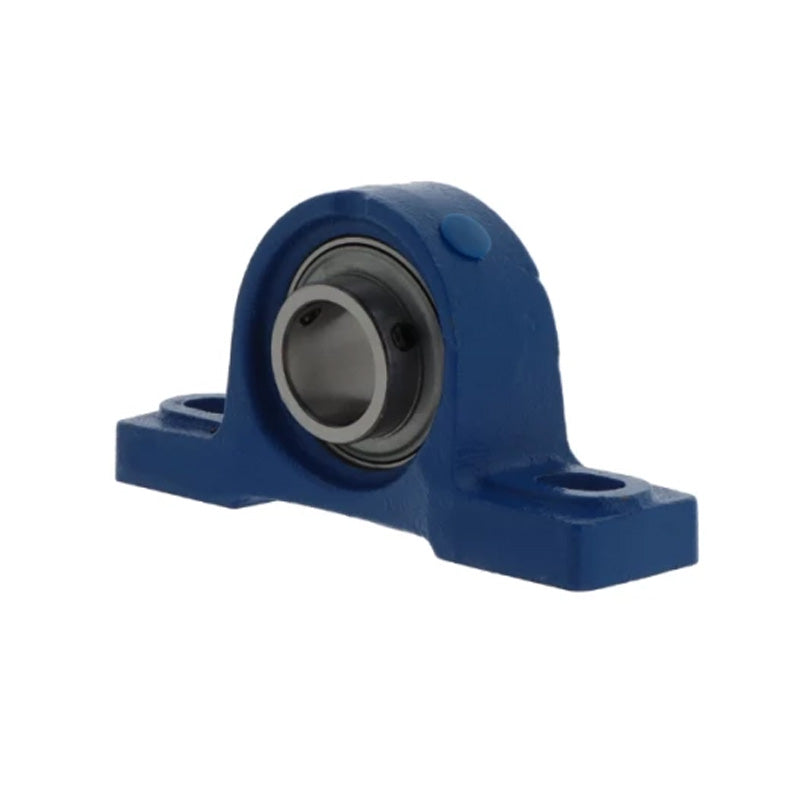

• Challenge / FK UCP201 Metric Cast Iron Two Bolt Pillow Block Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCP.201.TS.CHAL

Challenge / FK UCP201 Metric Cast Iron Two Bolt Pillow Block Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCP201 Metric Cast Iron Two Bolt Pillow Block Housing with 12mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$31.90 ex VAT
$31.90 ex VAT
Sale Sold out

Equivalent to: UCP.201

In stock

Price Break
3+ $21.37
5+ $20.17
9+ $19.93
19+ $19.69
49+ $19.45
74+ $19.21
99+ $18.01
199+ $17.77
249+ $17.53
499+ $17.29
999+ $16.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
12mm
Style:
UCP
Bolt Hole Centres:
95mm
Technical
Shaft Diameter d 12mm
Casting Centre Line Height h 33.3mm
Casting Length a 127mm
Recommended Bolt Centres l 95mm
Casting Width b 38mm
Slot Length s<sub>2</sub> 19mm
Slot Width s<sub>1</sub> 13mm
Foot Height g 14mm
Overall Height w 65mm
Bearing Insert Width Bi 31mm
Working Temperature -30&deg;C to +120&deg;C
Insert No UC201
Housing No P201
