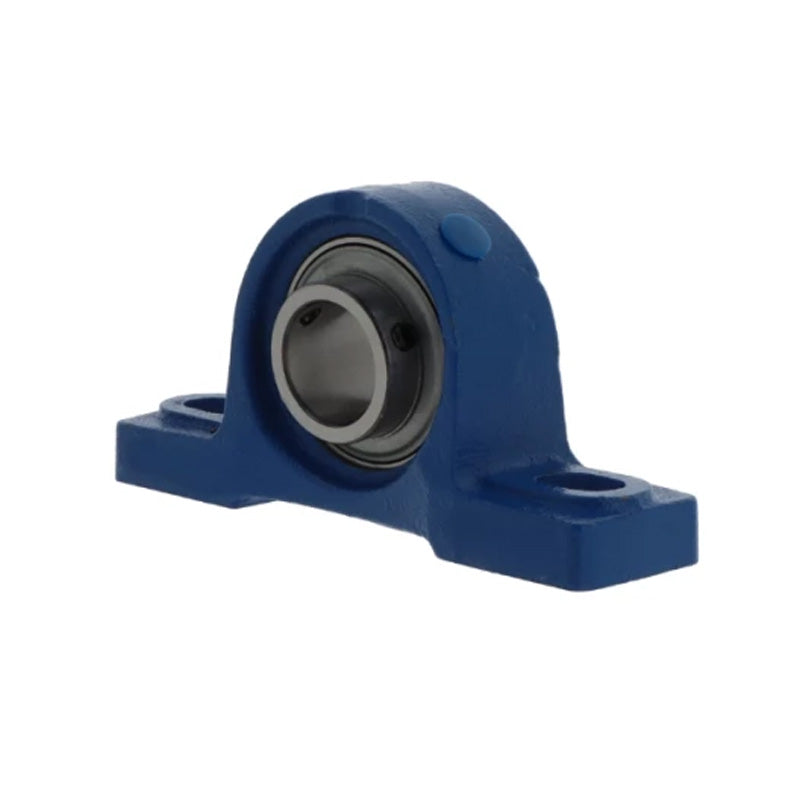

• Challenge / FK UCP202 Metric Cast Iron Two Bolt Pillow Block Housing with 15mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
1 1

SKU: UCP.202.TS.CHAL

Challenge / FK UCP202 Metric Cast Iron Two Bolt Pillow Block Housing with 15mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCP202 Metric Cast Iron Two Bolt Pillow Block Housing with 15mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
$31.90 ex VAT
$31.90 ex VAT
Sale Sold out

Equivalent to: UCP.202

In stock

Price Break
3+ $21.37
5+ $20.17
9+ $19.93
19+ $19.68
49+ $19.44
74+ $19.20
99+ $18.00
199+ $17.76
249+ $17.52
499+ $17.28
999+ $16.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Challenge / FK - Good Quality
Inside Diameter:
15mm
Style:
UCP
Bolt Hole Centres:
94mm
Technical
Shaft Diameter d 15mm
Casting Centre Line Height h 29mm
Casting Length a 124mm
Recommended Bolt Centres l 94mm
Casting Width b 37mm
Slot Length s<sub>2</sub> 18mm
Slot Width s<sub>1</sub> 12mm
Foot Height g 14mm
Overall Height w 61mm
Bearing Insert Width Bi 31mm
Working Temperature -30&deg;C to +120&deg;C
Insert No UC202
Housing No P202
