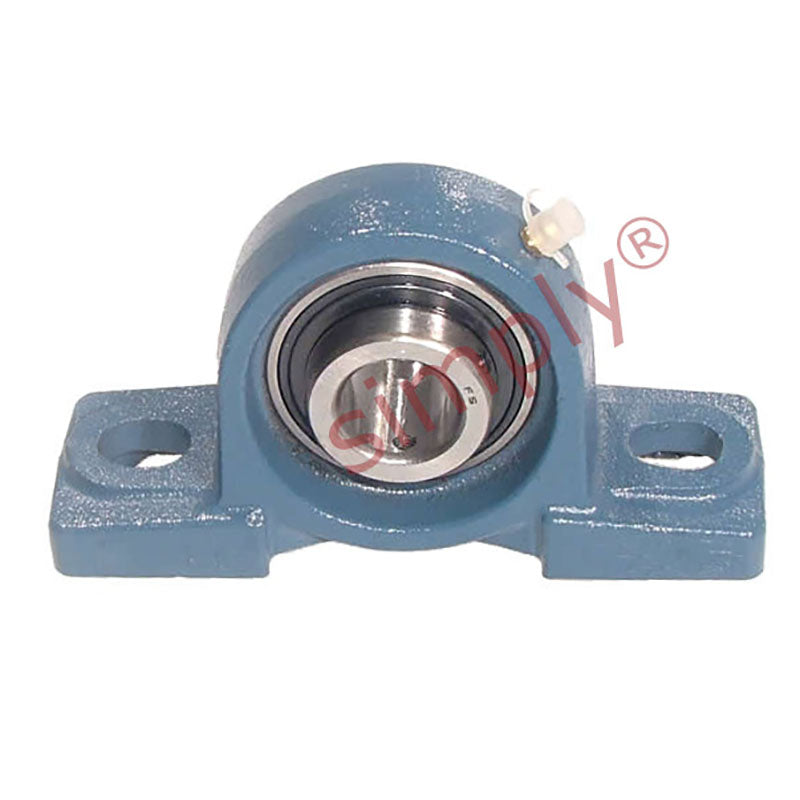

• UCP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Bore Insert
1 1

SKU: UCP.203-11

UCP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Bore Insert

UCP203-11 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 11/16 inch Bore Insert
$43.79 ex VAT
$43.79 ex VAT
Sale Sold out

Equivalent to: NP17

In stock

Price Break
3+ $29.33
4+ $27.68
9+ $27.35
19+ $27.02
49+ $26.69
99+ $26.37
499+ $24.72
999+ $24.39
1999+ $24.06
2999+ $23.73
4999+ $23.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17.46mm = 0.687 (11/16) inch
Style:
UCP
Bolt Hole Centres:
96mm
Technical
d 11/16 inch
h 30.2mm
a 127mm
e 96mm
b 38mm
s2 19mm
s1 13mm
g 15mm
w 62mm
B1 31mm
n 12.7mm
Bolt Size M10
Weight 0.63 kg
Dynamic load 760 kgf
Static load 450 kgf
Rec max speed 8800 rpm
