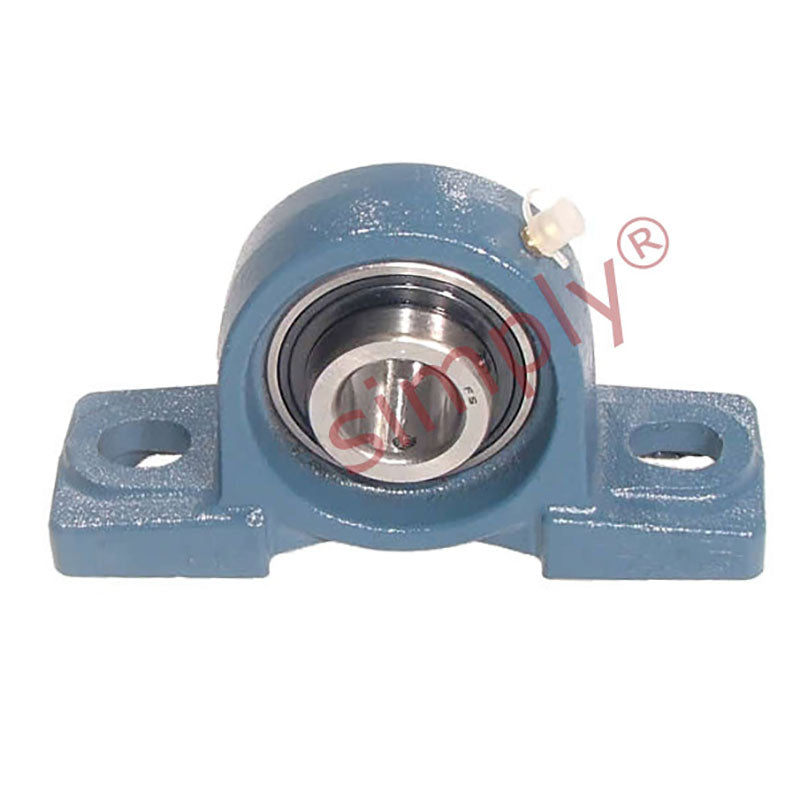

• UCP205-15 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Insert
1 1

SKU: UCP.205-15

UCP205-15 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Insert

UCP205-15 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Insert
$15.05 ex VAT
$15.05 ex VAT
Sale Sold out

Equivalent to: NP15/16

In stock

Price Break
3+ $10.09
4+ $9.52
9+ $9.41
19+ $9.29
49+ $9.18
99+ $9.07
499+ $8.50
999+ $8.39
1999+ $8.27
2999+ $8.16
4999+ $7.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
23.81mm = 0.937 (15/16) inch
Style:
UCP
Bolt Hole Centres:
105mm
Technical
d 15/16 inch
h 36.5mm
a 140mm
e 105mm
b 38mm
s2 19mm
s1 13mm
g 16mm
w 70mm
B1 34mm
n 14.3mm
Bolt Size M10
Weight 0.79 kg
Dynamic load 1100 kgf
Static load 710 kgf
Rec max speed 6250 rpm
