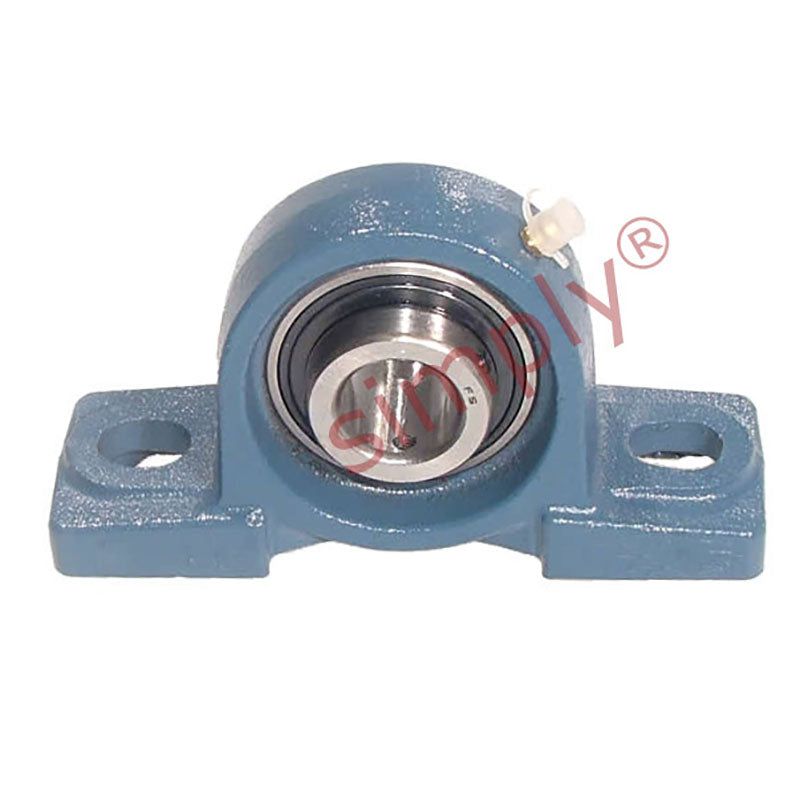

• UCP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert
1 1

SKU: UCP.206

UCP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert

UCP206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert
$17.26 ex VAT
$17.26 ex VAT
Sale Sold out

Equivalent to: NP30

In stock

Price Break
3+ $11.57
4+ $10.92
9+ $10.79
19+ $10.66
49+ $10.53
99+ $10.40
499+ $9.75
999+ $9.62
1999+ $9.49
2999+ $9.36
4999+ $9.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Style:
UCP
Bolt Hole Centres:
121mm
Technical
d 30mm
h 42.9mm
a 165mm
e 121mm
b 48mm
s2 21mm
s1 17mm
g 18mm
w 83mm
B1 38.1mm
n 15.9mm
Bolt Size M14
Weight 0.79 kg
Dynamic load 1520 kgf
Static load 1020 kgf
Rec max speed 5300 rpm
