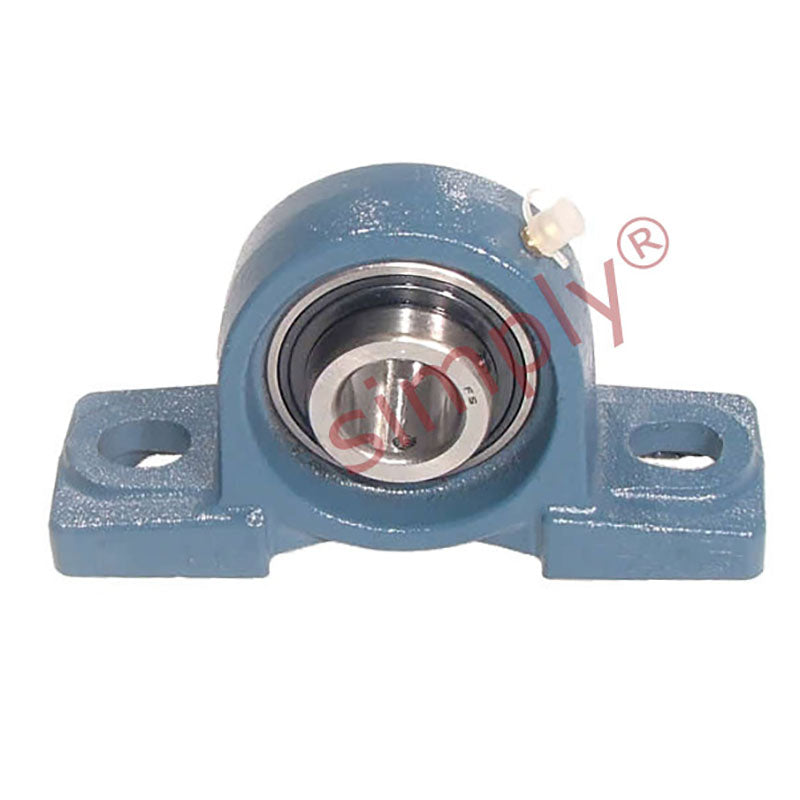

• UCP208-25 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Bore Insert
1 1

SKU: UCP.208-25

UCP208-25 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Bore Insert

UCP208-25 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-9/16 inch Bore Insert
$30.10 ex VAT
$30.10 ex VAT
Sale Sold out

Equivalent to: NP40

In stock

Price Break
3+ $20.16
4+ $19.03
9+ $18.80
19+ $18.58
49+ $18.35
99+ $18.12
499+ $16.99
999+ $16.76
1999+ $16.54
2999+ $16.31
4999+ $15.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
39.69mm = 1.563 (1-9/16) inch
Style:
UCP
Bolt Hole Centres:
136mm
Technical
d 1-9/16 inch
h 49.2mm
a 184mm
e 136mm
b 54mm
s2 21mm
s1 17mm
g 19mm
w 98mm
B1 49.2mm
n 19mm
Bolt Size M14
Weight 2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
