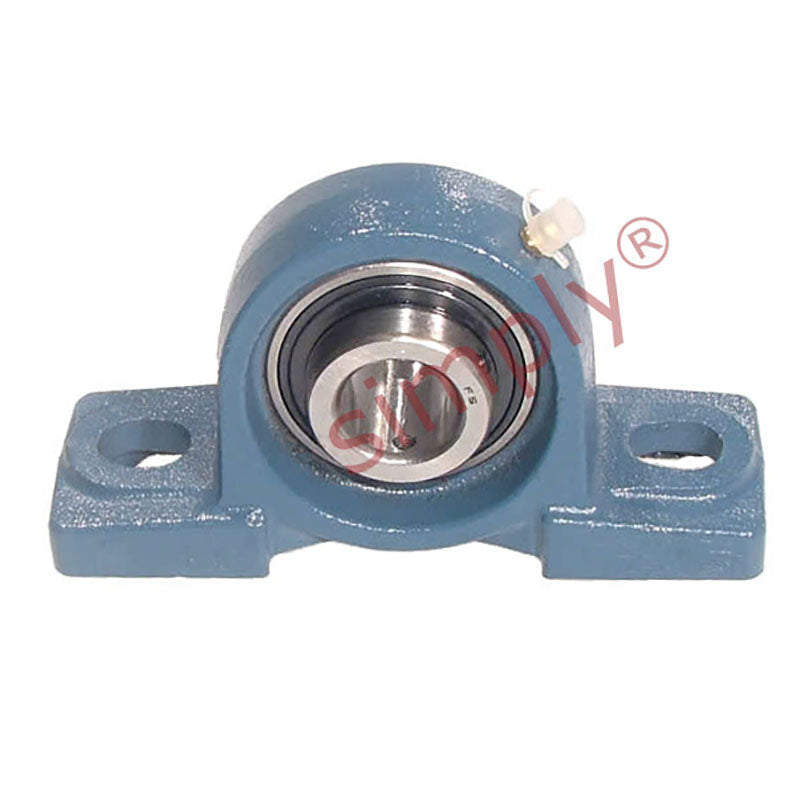

• UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
1 1

SKU: UCP.209

UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert

UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
$34.92 ex VAT
$34.92 ex VAT
Sale Sold out

Equivalent to: NP45

In stock

Price Break
3+ $23.38
4+ $22.07
9+ $21.81
19+ $21.55
49+ $21.28
99+ $21.02
499+ $19.71
999+ $19.44
1999+ $19.18
2999+ $18.92
4999+ $18.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Style:
UCP
Bolt Hole Centres:
146mm
Technical
d 45mm
h 54mm
a 190mm
e 146mm
b 54mm
s2 21mm
s1 17mm
g 20mm
w 106mm
B1 49.2mm
n 19mm
Bolt Size M14
Weight 2.2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 3700 rpm
